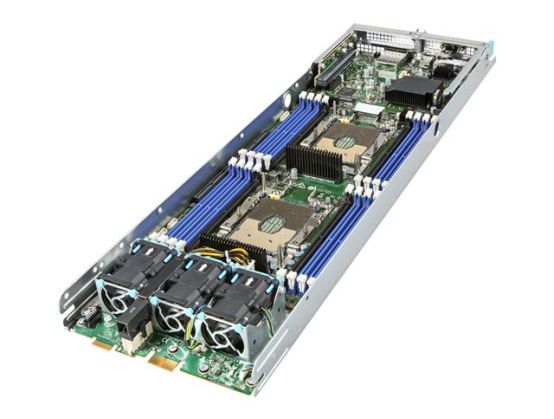

Intel Compute Module HNS2600BPS24R - Server - blade - 2-way - no CPU up to - RAM 0 GB - no HDD - AST2500 - Gigabit Ethernet, 10 Gigabit Ethernet - monitor: none
Manufacture#: HNS2600BPS24R
Checking delivery…
Product details
Server
blade
2-way
no CPU up to
Payment options available at checkout
Main features
Intel Compute Module HNS2600BPS24R
Server
blade
2-way
no CPU up to
RAM 0 GB
no HDD
AST2500
Gigabit Ethernet, 10 Gigabit Ethernet
monitor: none
Overview
The Intel Compute Module HNS2600BP product family is a purpose-built 1U density optimized compute module designed to operate as a single system node within a multi-node chassis.
Product Description
Intel Compute Module HNS2600BPS24R - blade - no CPU - 0 GB - no HDD
Type
Server - blade
Server Scalability
2-way
Processor
No CPU
Processor Socket
Socket P
RAM
0 GB (installed) / 2.8 TB (max) - DDR4 SDRAM - ECC
Storage Controller
SATA (SATA 6Gb/s)
Hard Drive
No HDD
Optical Storage
No optical drive
Graphics Controller
ASPEED AST2500
Networking
1GbE, 10GbE
Dimensions (WxDxH)
17.75 cm x 63.103 cm x 4.081 cm
Weight
4.32 kg
Manufacturer Warranty
Limited warranty - 3 years
General
Type
Server
Product Form Factor
Blade
Embedded Security
Trusted Platform Module (TPM 2.0) Security Chip
Server Scalability
2-way
Processor / Chipset
CPU
No CPU
Max CPU Qty
2
CPU Upgradability
Upgradable
CPU Socket
Socket P
Chipset Type
Intel C622
RAM
Installed Size
0 GB / 2.8 TB (max)
Technology
DDR4 SDRAM - ECC
Form Factor
DIMM 288-pin
Slots
16 (Total) / 16 (empty)
Features
Registered, Load-Reduced DIMM (LRDIMM)
Storage Controller
Type
SATA
Controller Interface Type
SATA 6Gb/s
Channel Qty
8
RAID Level
RAID 0, RAID 1, RAID 5, RAID 10, RAID 50
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Graphics Controller
Graphics Processor
ASPEED AST2500
Video Interfaces
VGA
Networking
Ethernet Ports
2 x SFP+
Ethernet Controller
Intel X722
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Remote Management Protocol
IPMI 2.0
Remote Management Controller
Intel Baseboard Management Controller (BMC)
Features
Integrated BMC with IPMI
Expansion / Connectivity
Slots
1 (total) / 1 (free) x M.2 Card - 2242 ¦ 4 (total) / 4 (free) x expansion slot
Interfaces
1 x VGA ¦ 2 x USB 3.0 ¦ 2 x LAN (10Gigabit Ethernet) - SFP+ ¦ 1 x management - RJ-45
Miscellaneous
Included Accessories
2 x CPU Heatsink, air duct, 3 x system fans, M.2 (80 mm) riser card
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Dimensions & Weight
Width
17.75 cm
Depth
63.103 cm
Height
4.081 cm
Weight
4.32 kg
Dimensions & Weight (Shipping)
Shipping Width
27.2 cm
Shipping Depth
72 cm
Shipping Height
16 cm
Shipping Weight
5.6 kg
