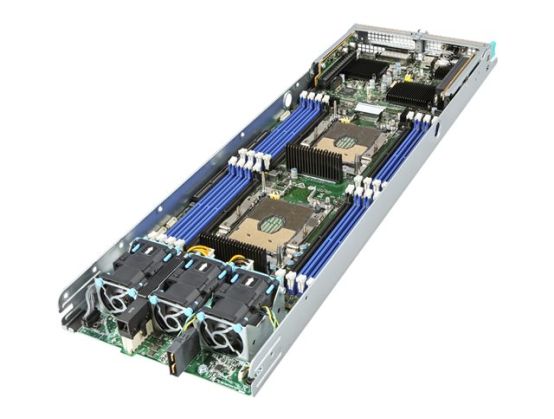

Intel Compute Module HNS2600BPSR - Server - blade - 2-way - no CPU up to - RAM 0 GB - no HDD - Gigabit Ethernet, 10 Gigabit Ethernet - monitor: none
Manufacture#: HNS2600BPSR
Checking delivery…
Product details
Server
blade
2-way
no CPU up to
Payment options available at checkout
Main features
Intel Compute Module HNS2600BPSR
Server
blade
2-way
no CPU up to
RAM 0 GB
no HDD
Gigabit Ethernet, 10 Gigabit Ethernet
monitor: none
Overview
Intel Compute Module HNS2600BPSR - blade - no CPU - 0 GB - no HDD
Product Description
Intel Compute Module HNS2600BPSR - blade - no CPU - 0 GB - no HDD
Type
Server - blade
Server Scalability
2-way
Processor
No CPU
Processor Socket
Socket P
RAM
0 GB (installed) / 2.8 TB (max) - DDR4 SDRAM - ECC
Storage Controller
SATA (SATA 6Gb/s)
Hard Drive
No HDD
Optical Storage
No optical drive
Networking
1GbE, 10GbE
Manufacturer Warranty
Limited warranty - 3 years
General
Type
Server
Product Form Factor
Blade
Embedded Security
Trusted Platform Module (TPM 2.0) Security Chip
Server Scalability
2-way
Processor / Chipset
CPU
No CPU
Max CPU Qty
2
CPU Upgradability
Upgradable
CPU Socket
Socket P
Chipset Type
Intel C622
RAM
Installed Size
0 GB / 2.8 TB (max)
Technology
DDR4 SDRAM - ECC
Form Factor
DIMM 288-pin
Slots
16 (Total) / 16 (empty)
Features
Registered, Load-Reduced DIMM (LRDIMM)
Storage Controller
Type
SATA
Controller Interface Type
SATA 6Gb/s
Channel Qty
8
RAID Level
RAID 0, RAID 1, RAID 5, RAID 10, RAID 50
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Graphics Controller
Video Interfaces
VGA
Networking
Ethernet Ports
2 x SFP+
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Remote Management Protocol
IPMI 2.0
Remote Management Controller
Intel Baseboard Management Controller (BMC)
Features
Integrated BMC with IPMI
Expansion / Connectivity
Slots
1 (total) / 1 (free) x PCIe 3.0 x16 (low-profile) ¦ 1 (total) / 1 (free) x M.2 Card - 2242
Interfaces
1 x VGA ¦ 2 x USB 3.0 ¦ 2 x LAN (10Gigabit Ethernet) - SFP+ ¦ 1 x serial
Miscellaneous
Included Accessories
2 x CPU Heatsink, air duct, 2 x riser cards, node power board, 1U node tray, 3 x system fans, external VGA port bracket, Intel Server Board S2600BPSR
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
