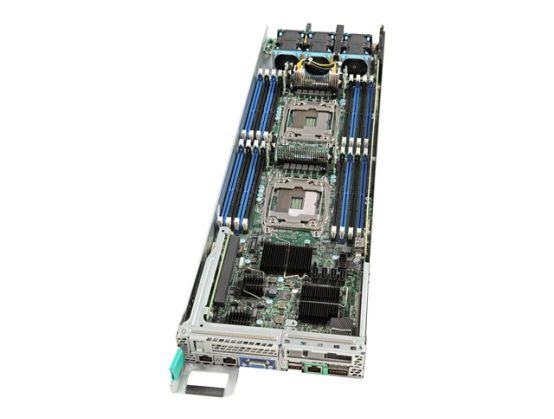

Intel Compute Module HNS2600TPR - Server - blade - 2-way - no CPU - RAM 0 GB - no HDD - monitor: none
Checking delivery…
Product details
Server
blade
2-way
no CPU
Payment options available at checkout
Main features
Intel Compute Module HNS2600TPR
Server
blade
2-way
no CPU
RAM 0 GB
no HDD
GigE, 10 GigE
monitor: none
Overview
The Intel server board S2600TP is a purpose built, rack optimized server board ideal for use in hyper-converged, data analytics, storage, cloud, and high-performance computing (HPC) applications. Designed to support 16 DIMM slots per server board at 2 DIMMs per channel and advanced processor, the Intel server board S2600TP maximizes memory and processor bandwidth to meet demanding compute use requirements. Integrated features such as 56 Gb/s FDR InfiniBand, PCIe expandability enable optimal performance configuration per installation.
Product Description
Intel Compute Module HNS2600TPR - blade - no CPU - 0 GB - no HDD
Type
Server - blade
Server Scalability
2-way
Processor
No CPU
Processor Socket
LGA2011-v3 Socket
RAM
0 GB (installed) / 1 TB (max) - DDR4 SDRAM
Storage Controller
SATA (SATA 6Gb/s)
Hard Drive
No HDD
Optical Storage
No optical drive
Networking
GigE, 10 GigE
Manufacturer Warranty
Limited warranty - 3 years
General
Type
Server
Product Form Factor
Blade
Server Scalability
2-way
Processor / Chipset
CPU
No CPU
Max CPU Qty
2
CPU Upgradability
Upgradable
CPU Socket
LGA2011-v3 Socket
Chipset Type
Intel C612
RAM
Installed Size
0 GB / 1 TB (max)
Technology
DDR4 SDRAM
Form Factor
DIMM 288-pin
Slots
16 (Total) / 16 (empty)
Storage Controller
Type
1 x SATA
Controller Interface Type
SATA 6Gb/s
Channel Qty
10
RAID Level
RAID 5
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Graphics Controller
Type
Integrated
Video Interfaces
VGA
Networking
Ethernet Ports
2 x Gigabit Ethernet
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Remote Management Protocol
IPMI 2.0
Expansion / Connectivity
Slots
2 (total) / 2 (free) x CPU ¦ 16 (total) / 16 (free) x DIMM 288-pin ¦ 1 (total) / 1 (free) x PCIe 3.0 x16
Interfaces
1 x VGA ¦ 4 x USB 2.0 ¦ 2 x LAN (Gigabit Ethernet) - RJ-45
Miscellaneous
Included Accessories
2 x CPU Heatsink, PCI-Express (1x16) Riser Card, air duct, bridge board, node power board, 1U node tray
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
