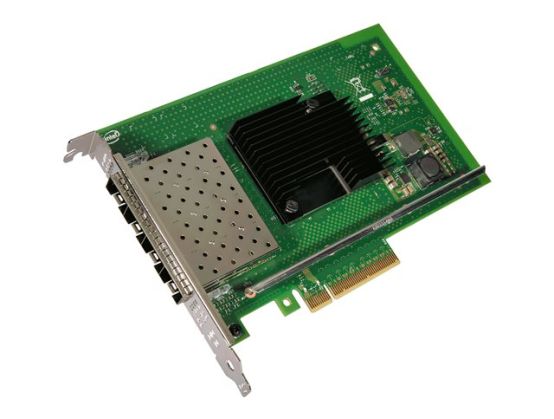

Intel Ethernet Converged Network Adapter X710-DA4 - Network adapter - PCIe 3.0 x8 low profile - 10 Gigabit SFP+ x 4

Name: Intel Ethernet Converged Network Adapter X710-DA4 - Network adapter - PCIe 3.0 x8 low profile - 10 Gigabit SFP+ x 4
Brand: INTEL
SKU: 1TNETNIC-004749
Price: 428.77 GBP
Availability: OutOfStock

SKU

1TNETNIC-004749

Manufacture#: X710DA4G2P5

£357.31

£428.77 inc VAT

Checking delivery…

Product details

Network adapter
PCIe 3.0 x8 low profile
10 Gigabit SFP+ x 4

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

Intel Ethernet Converged Network Adapter X710-DA4
Network adapter
PCIe 3.0 x8 low profile
10 Gigabit SFP+ x 4

Overview

The X710 adapter family addresses the demanding needs of the next-generation agile data center by providing unmatched features for both server and network virtualization, flexibility for LAN and SAN networks and proven, reliable performance.

Specification

Product Description Intel Ethernet Converged Network Adapter X710-DA4 - network adapter - PCIe 3.0 x8 - 10 Gigabit SFP+ x 4

Device Type Network adapter

Form Factor Plug-in card - low profile

Interface (Bus) Type PCI Express 3.0 x8

Ports 10 Gigabit SFP+ x 4

Dimensions (WxDxH) 16.7 cm x 11.1 cm

Data Link Protocol 10 GigE

Data Transfer Rate 10 Gbps

Network / Transport Protocol TCP/IP, UDP/IP, iSCSI

Compliant Standards IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.1Qbg

System Requirements Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Microsoft Windows Server 2008 R2 x64 Edition, Linux Kernel 2.6.32, Microsoft Windows Server 2012, FreeBSD 9, VMware ESXi 5.1, Microsoft Windows Server 2012 x64 Edition, Microsoft Windows Server 2012 R2, Linux Kernel 3.x, Microsoft Windows Server 2012 R2 x64 Edition, SuSE Linux Enterprise Server 11 SP3, Red Hat Enterprise Linux 6.5, VMware ESXi 5.5, FreeBSD 10, Red Hat Enterprise Linux 7, SuSE Linux Enterprise Server 11 SP3 x64 Edition, SUSE Linux Enterprise Server 12 x64 Edition

Manufacturer Warranty Limited lifetime warranty

General

Device Type Network adapter

Form Factor Plug-in card - low profile

Interface (Bus) Type PCI Express 3.0 x8

Networking

Ports 10 Gigabit SFP+ x 4

Connectivity Technology Wired

Data Link Protocol 10 Gigabit Ethernet

Data Transfer Rate 10 Gbps

Network / Transport Protocol TCP/IP, UDP/IP, iSCSI

Remote Management Protocol SNMP, RMON

Status Indicators Port transmission speed, link/activity

Features Flow control, VLAN support, packet filtering, IPv6 support, TCP/IP offloading, Quality of Service (QoS), Virtual Machine Device Queues (VMDq), IPv4 support, teaming support, PXE support, Large Send Offload (LSO), Giant Send Offload (GSO), Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), Data Center Bridging (DCB), adaptive load balancing (ALB), Energy Efficient Ethernet, TCP Segmentation Offload (TSO), checksum offload support, Extended Message-Signaled Interrupts (MSI-X), UDP/IP offloading, Watch Dog Timer (WDT), FCoE support, iSCSI boot

Compliant Standards IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.1Qbg

Expansion / Connectivity

Interfaces 4 x 10Gb Ethernet - SFP+

Miscellaneous

Compliant Standards FCC Class B certified, UL, VCCI, C-Tick, BSMI, RoHS, KCC, Directive 2011/65/EU, MSA SFF-8431

Package Type OEM

Software / System Requirements

OS Required Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Microsoft Windows Server 2008 R2 x64 Edition, Linux Kernel 2.6.32, Microsoft Windows Server 2012, FreeBSD 9, VMware ESXi 5.1, Microsoft Windows Server 2012 x64 Edition, Microsoft Windows Server 2012 R2, Linux Kernel 3.x, Microsoft Windows Server 2012 R2 x64 Edition, SuSE Linux Enterprise Server 11 SP3, Red Hat Enterprise Linux 6.5, VMware ESXi 5.5, FreeBSD 10, Red Hat Enterprise Linux 7, SuSE Linux Enterprise Server 11 SP3 x64 Edition, SUSE Linux Enterprise Server 12 x64 Edition

Dimensions & Weight

Depth 16.7 cm

Height 11.1 cm

Manufacturer Warranty

Service & Support Limited warranty - lifetime

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 55 °C

Product Accessories

INTEL

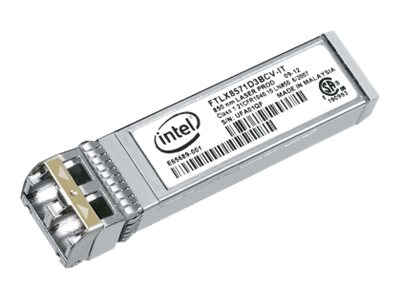

INTEL Intel Ethernet SFP+ SR Optics - SFP+ transceiver module - 1GbE, 10GbE
