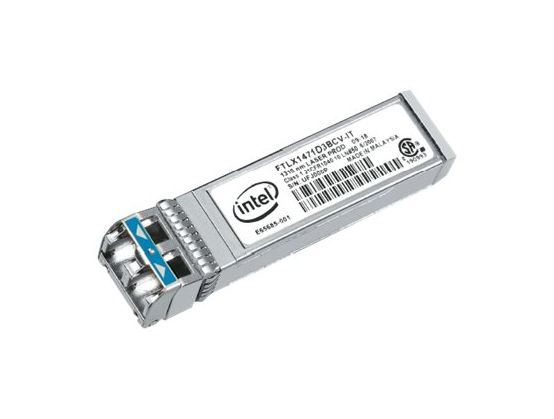

Intel Ethernet SFP+ LR Optics - SFP+ transceiver module - 10GbE - 1000Base-LX, 10GBase-LR - LC single-mode - up to 10 km - 1310 nm - for Ethernet Converged Network Adapter X520, X710, Ethernet Server Adapter X520
Checking delivery…
Product details
SFP+ transceiver module
10GbE
1000Base-LX, 10GBase-LR
LC single-mode
Payment options available at checkout
Main features
Intel Ethernet SFP+ LR Optics
SFP+ transceiver module
10GbE
1000Base-LX, 10GBase-LR
LC single-mode
up to 10 km
1310 nm
for Ethernet Converged Network Adapter X520, X710; Ethernet Server Adapter X520
Overview
The Intel Ethernet SFP+ LR (Long Range - Max link distance is 10km) Optic is a SFP+ module designed for the Intel Ethernet Converged Network Adapters (X520 family: product codes: E10G43BTDA, E10G41BFSR, E10G42BFSR, E10G41BFLR). This lead free optic module supports rates selectable 1.25 Gb/s to 10.3 Gb/s bit rates.
Product Description
Intel Ethernet SFP+ LR Optics - SFP+ transceiver module - 1GbE, 10GbE
Device Type
SFP+ transceiver module - LC single-mode
Form Factor
Plug-in module
Cabling Type
1000Base-LX, 10GBase-LR
Data Transfer Rate
10 Gbps
Optical Wave Length
1310 nm
Data Link Protocol
1GbE, 10GbE
Max Transfer Distance
10 km
Designed For
Ethernet Converged Network Adapter X520-DA2, X520-SR1, X520-SR2, X710-DA4; Ethernet Server Adapter X520-SR2
General
Device Type
SFP+ transceiver module
Form Factor
Plug-in module
Networking
Connectivity Technology
Wired
Cabling Type
1000Base-LX, 10GBase-LR
Data Link Protocol
1GbE, 10GbE
Data Transfer Rate
10 Gbps
Optical Wave Length
1310 nm
Max Transfer Distance
10 km
Expansion / Connectivity
Interfaces
1 x Ethernet 10GBase-LR/1000Base-LX - LC single-mode x 2
Compatible Slots
1 x SFP+
Miscellaneous
Compliant Standards
RoHS
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
70 °C
Compatibility Information
Designed For
Intel Ethernet Converged Network Adapter X520-DA2, X520-SR1, X520-SR2, X710-DA4 ¦ Intel Ethernet Server Adapter X520-SR2
