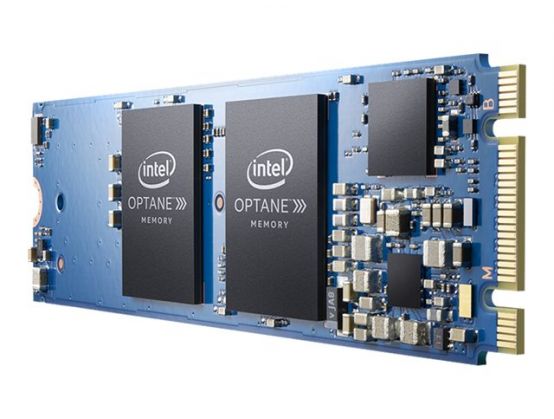

INTEL OPTANE MEMORY 16 GB PCIE M.2 80MM GENERIC 1PK
Manufacture#: MEMPEK1W016GA01
Order by 15:00 and receive your order on Friday 18 Apr
Product details
SSD
16 GB
3D Xpoint (Optane)
internal
Payment options available at checkout
Main features
Intel Optane Memory Series
SSD
16 GB
3D Xpoint (Optane)
internal
M.2 2280
PCIe 3.0 x2 (NVMe)
Overview
Intel Optane memory accelerates your system - delivering amazing speed and responsiveness without compromising system storage capacity. Combine a large storage device with Intel Optane memory for a responsive computer that keeps up with your most demanding applications.
Product Description
Intel Optane Memory Series - SSD - 16 GB - PCIe 3.0 x2 (NVMe)
Type
Solid state drive - internal
Capacity
16 GB
SSD Technology
3D Xpoint (Optane)
NAND Flash Memory Type
20nm
Form Factor
M.2 2280
Interface
PCIe 3.0 x2 (NVMe)
Features
Intel Rapid Storage Technology, Temperature Monitoring and Logging, End-to-end data protection, Rapid Start Technology
Dimensions (WxDxH)
1.5 mm
Weight
40 g
Manufacturer Warranty
5-year warranty
General
Device Type
Solid state drive - internal
Capacity
16 GB
SSD Technology
3D Xpoint (Optane)
NAND Flash Memory Type
20nm
Form Factor
M.2 2280
Interface
PCIe 3.0 x2 (NVMe)
Features
Intel Rapid Storage Technology, Temperature Monitoring and Logging, End-to-end data protection, Rapid Start Technology
Height
1.5 mm
Weight
40 g
Performance
SSD Endurance
182.5 TB
Internal Data Rate
900 MBps (read) / 145 MBps (write)
4KB Random Read
190000 IOPS
4KB Random Write
35000 IOPS
Average Latency
7 µs
Reliability
MTBF
1,600,000 hours
Non-Recoverable Errors
1 per 10^15
Expansion & Connectivity
Interfaces
1 x PCI Express 3.0 x2 (NVMe) - M.2 Card
Compatible Bay
M.2 2280
Power
Power Consumption
1 Watt (idle) ¦ 3.5 Watt (active)
Software & System Requirements
OS Required
Windows 10 64-bit Edition
Miscellaneous
Compliant Standards
RoHS
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
70 °C
Shock Tolerance (operating)
1500 g @ 0.5 ms
Shock Tolerance (non-operating)
1500 g @ 0.5 ms
Vibration Tolerance (operating)
2.17 g @ 5-800 Hz
Vibration Tolerance (non-operating)
3.13 g @ 5-800 Hz
