INTEL

Intel S4510 Entry - SSD - encrypted - 960 GB - hot-swap - 2.5" - SATA 6Gb/s - 256-bit AES - for ThinkAgile MX3330-H Appliance, MX3531-H Hybrid Certified Node, VX7330-N Appliance

Name: Intel S4510 Entry - SSD - encrypted - 960 GB - hot-swap - 2.5" - SATA 6Gb/s - 256-bit AES - for ThinkAgile MX3330-H Appliance, MX3531-H Hybrid Certified Node, VX7330-N Appliance
Brand: INTEL
SKU: 1TCOMSRV-006854
Price: 1138.91 GBP
Availability: OutOfStock

SKU

1TCOMSRV-006854

Manufacture#: 4XB7A38154

Be the first to review this product

£949.09

£1138.91 inc VAT

Checking delivery…

Product details

SSD
encrypted
960 GB
hot-swap

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

Intel S4510 Entry
SSD
encrypted
960 GB
hot-swap
2.5"
SATA 6Gb/s
256-bit AES
for ThinkAgile MX3330-H Appliance; MX3531-H Hybrid Certified Node; VX7330-N Appliance

Overview

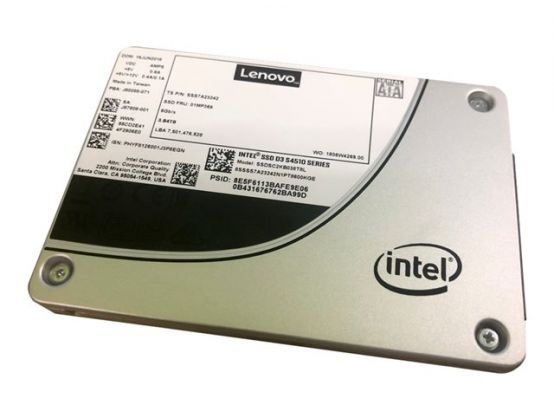

The Intel S4510 Entry SATA solid-state drives (SSDs) for Lenovo servers use Intel 64-layer 3D NAND TLC Flash Memory technology with a 6Gbps SATA interface to provide an affordable solution with perfect performance. The S4510 SSDs are optimized for read-intensive applications such as boot, web servers, lower data rate operational databases and analytics.

Specification

Product Description Intel S4510 Entry - SSD - 960 GB - SATA 6Gb/s

Type Solid state drive - hot-swap

Capacity 960 GB

Hardware Encryption Yes

Encryption Algorithm 256-bit AES

NAND Flash Memory Type 3D triple-level cell (TLC)

Form Factor 2.5"

Interface SATA 6Gb/s

Data Transfer Rate 600 MBps

Features Standard Endurance Technology (SET), Enhanced Power Loss Data Protection, Thermal throttling, End-to-end data path protection, End-to-end data protection, 3D NAND Technology, S.M.A.R.T.

Dimensions (WxDxH) 70 mm x 100 mm x 7 mm

Weight 63 g

Manufacturer Warranty 1-year warranty

Designed For ThinkAgile MX3330-H Appliance 7D19 (2.5"); MX3531-H Hybrid Certified Node 7D66 (2.5"); VX2330 Appliance 7Z62 (2.5"); VX3330 Appliance 7Z62 (2.5"); VX3331 7Z62 (2.5"); VX3530-G Appliance 7Z63 (2.5"); VX5530 Appliance 7Z63 (2.5"); VX7330-N Appliance 7Z62 (2.5"); VX7530 Appliance 7Z63 (2.5"); VX7531 Certified Node 7Z63 (2.5"); ThinkSystem SR630 V2 7Z71 (2.5"); SR650 V2 7D15 (2.5"), 7Z73 (2.5"); SR850 V2 7D31 (2.5"), 7D32 (2.5"), 7D33 (2.5"); SR860 V2 7D42 (2.5"), 7Z59 (2.5"), 7Z60 (2.5")

General

Device Type Solid state drive - hot-swap

Capacity 960 GB

Hardware Encryption Yes

Encryption Algorithm 256-bit AES

NAND Flash Memory Type 3D triple-level cell (TLC)

Form Factor 2.5"

Interface SATA 6Gb/s

Features Standard Endurance Technology (SET), Enhanced Power Loss Data Protection, Thermal throttling, End-to-end data path protection, End-to-end data protection, 3D NAND Technology, S.M.A.R.T.

Width 70 mm

Depth 100 mm

Height 7 mm

Weight 63 g

Performance

Drive Writes Per Day (DWPD) 1.9

SSD Endurance 3.4 PB

Drive Transfer Rate 600 MBps (external)

Internal Data Rate 560 MBps (read) / 510 MBps (write)

4KB Random Read 95000 IOPS

4KB Random Write 36000 IOPS

Average Latency 36 µs

Reliability

MTBF 2,000,000 hours

Non-Recoverable Errors 1 per 10^17

Expansion & Connectivity

Interfaces 1 x SATA 6 Gb/s

Compatible Bay 2.5"

Power

Power Consumption 2.4 Watt (typical)

Miscellaneous

Included Accessories Hot-plug tray

Compliant Standards FCC CFR47 Part 15 B Class B, CAN/CSA-CEI/IEC CISPR 22:02, EN55024:1998, EN55022:2006, EN 60950-1 Second Edition, UL/CSA60950-1 (2nd Edition), LVD 2006/95/EC, AS/NZS 3584, BSMI CNS 13438, KCC Article 11.1, RoHS 2011/65/EU, WEEE 2002/96/EC

Dimensions & Weight (Shipping)

Shipping Width 17.4 cm

Shipping Depth 13.3 cm

Shipping Height 6.3 cm

Shipping Weight 434 g

Manufacturer Warranty

Service & Support Limited warranty - replacement - 1 year

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 70 °C

Humidity Range Operating 5 - 95% (non-condensing)

Shock Tolerance (operating) 1000 g @ 0.5 ms

Vibration Tolerance (operating) 2.17 g @ 5-700 Hz

Vibration Tolerance (non-operating) 3.13 g @ 5-800 Hz

Compatibility Information

Designed For Lenovo ThinkAgile MX3330-H Appliance 7D19 (2.5") ¦ Lenovo ThinkAgile MX3531-H Hybrid Certified Node 7D66 (2.5") ¦ Lenovo ThinkAgile VX2330 Appliance 7Z62 (2.5") ¦ Lenovo ThinkAgile VX3330 Appliance 7Z62 (2.5") ¦ Lenovo ThinkAgile VX3331 7Z62 (2.5") ¦ Lenovo ThinkAgile VX3530-G Appliance 7Z63 (2.5") ¦ Lenovo ThinkAgile VX5530 Appliance 7Z63 (2.5") ¦ Lenovo ThinkAgile VX7330-N Appliance 7Z62 (2.5") ¦ Lenovo ThinkAgile VX7530 Appliance 7Z63 (2.5") ¦ Lenovo ThinkAgile VX7531 Certified Node 7Z63 (2.5") ¦ Lenovo ThinkSystem SR630 V2 7Z71 (2.5") ¦ Lenovo ThinkSystem SR650 V2 7D15 (2.5"), 7Z73 (2.5") ¦ Lenovo ThinkSystem SR850 V2 7D31 (2.5"), 7D32 (2.5"), 7D33 (2.5") ¦ Lenovo ThinkSystem SR860 V2 7D42 (2.5"), 7Z59 (2.5"), 7Z60 (2.5")
