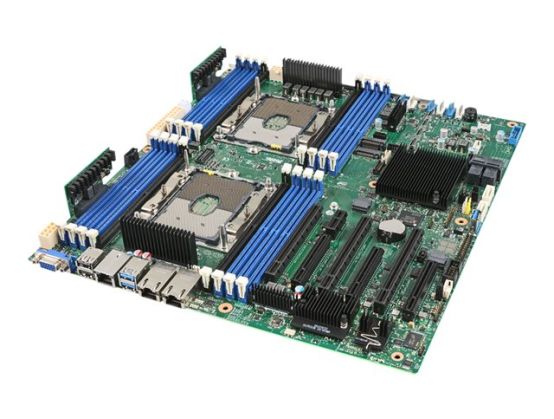

The Intel Server Board S2600ST offers small and medium businesses a general-purpose, price-performance solution for networking scenarios involving storage, security and embedded appliances. Optimized for use with the 2nd Generation Intel Xeon processor Scalable family, the board features multiple PCIe lanes and a standard form factor for greater versatility in a variety of use cases including cloud, storage, and telecommunications. Together, this standard form factor and rich feature set helps an organizations' ability to move, store, and process data more quickly in a variety of environments.
Standard EEB form factor with flexible I/O, storage, and networking capacity
Ideal for performance storage, networking, web hosting, and security appliances
High scalability and resiliency with no I/O compromise to support a wide range of workloads
Expansion Slots2 x CPU ¦ 16 x DIMM 288-pin (1.2 V) ¦ 3 x PCIe 3.0 x16 ¦ 3 x PCIe 3.0 x8
Storage InterfacesIntel C624: PCIe 3.0 -connectors: 4 x NVMe port ¦ Intel C624: SATA-600 -connectors: 2 x 7pin Serial ATA ¦ Intel C624: SATA-600 / PCIe -connectors: 2 x M.2 ¦ Intel C624: SATA-600 -connectors: 2 x mini-SAS HD
RAID FeaturesSoftware RAID 0/ 1 / 10
Interfaces2 x LAN (10Gigabit Ethernet) ¦ 2 x USB 2.0 ¦ 2 x USB 3.0 ¦ 1 x VGA
Internal Interfaces1 x USB 3.0 - Type A ¦ 2 x USB 3.0 - header ¦ 1 x serial
