Intel Server System R1208WTTGSR - Server - rack-mountable - 1U - 2-way - no CPU - RAM 0 GB - SATA - hot-swap 2.5" bay(s) - no HDD - monitor: none
Manufacture#: R1208WTTGSR
Checking delivery…
Product details
Server
rack-mountable
1U
2-way
Payment options available at checkout
Main features
Intel Server System R1208WTTGSR
Server
rack-mountable
1U
2-way
no CPU
RAM 0 GB
SATA
hot-swap 2.5" bay(s)
no HDD
GigE, 10 GigE
monitor: none
Overview

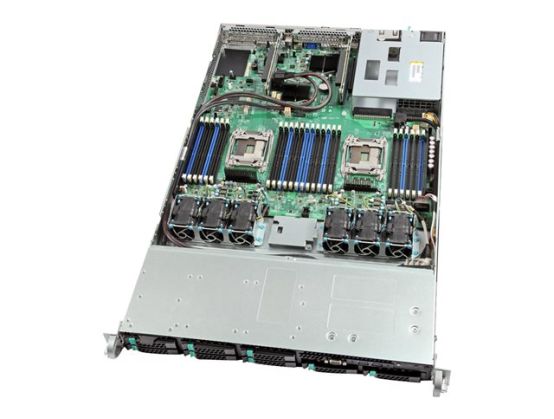

Integrated 1U system featuring Intel Server Board S2600WTTR supporting eight 2.5 inch hot-swap drives, dual 10-GbE LAN, 24 DIMMs, one 750 W redundant-capable power supply, enterprise class I/O, with built in discrete management network interface.
Product Description
Intel Server System R1208WTTGSR - rack-mountable - no CPU - 0 GB - no HDD
Type
Server - rack-mountable
Height (Rack Units)
1U
Server Scalability
2-way
Processor
No CPU
Processor Socket
LGA2011-v3 Socket
RAM
0 GB (installed) / 1536 GB (max) - DDR4 SDRAM - ECC
Storage Controller
RAID (SATA 6Gb/s / SAS 12Gb/s)
Server Storage Bays
Hot-swap 2.5"
Hard Drive
No HDD
Optical Storage
No optical drive
Networking
GigE, 10 GigE
Power
AC 120/230 V (50/60 Hz)
Power Redundancy
Optional
Dimensions (WxDxH)
43 cm x 71 cm x 4.37 cm
Manufacturer Warranty
Limited warranty - 3 years
General
Type
Server
Product Form Factor
Rack-mountable - 1U
Embedded Security
Trusted Platform Module (TPM 2.0) Security Chip
Server Scalability
2-way
Front Accessible Bays Qty
8
Hot-Swap Bays Qty
8
Processor / Chipset
CPU
No CPU
Max CPU Qty
2
CPU Upgradability
Upgradable
CPU Socket
LGA2011-v3 Socket
Chipset Type
Intel C612
RAM
Installed Size
0 GB / 1536 GB (max)
Technology
DDR4 SDRAM - ECC
Form Factor
DIMM 288-pin
Slots
24 (Total) / 24 (empty)
Storage Controller
Type
1 x RAID
Controller Interface Type
SATA 6Gb/s / SAS 12Gb/s
Channel Qty
10
RAID Level
RAID 0, RAID 1, RAID 10
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Graphics Controller
Type
Integrated
Video Interfaces
VGA
Networking
Ethernet Ports
2 x 10 Gigabit Ethernet
Ethernet Controller
Intel X540
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Remote Management Protocol
IPMI 2.0
Remote Management Controller
Emulex Pilot 3 iBMC
Expansion / Connectivity
Bays
8 (total) / 8 (free) x hot-swap 2.5"
Slots
2 (total) / 2 (free) x CPU ¦ 24 (total) / 24 (free) x DIMM 288-pin ¦ 1 (total) / 1 (free) x PCIe 3.0 x4 ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 ¦ 2 (total) / 2 (free) x PCIe 3.0 x16
Interfaces
1 x VGA ¦ 8 x USB 3.0 ¦ 2 x LAN (10Gigabit Ethernet) - RJ-45 ¦ 2 x serial - RJ-45
Miscellaneous
Included Accessories
2 x CPU Heatsink, 2 x riser cards
Cables Included
Mini SAS HD cable (2 pcs.)
Power
Device Type
Power supply - hot-plug
Power Redundancy
Optional
Power Redundancy Scheme
1+1 (with optional power supply)
Installed Qty
1
Max Supported Qty
2
Voltage Required
AC 120/230 V (50/60 Hz)
Power Provided
750 Watt
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Dimensions & Weight
Width
43 cm
Depth
71 cm
Height
4.37 cm
