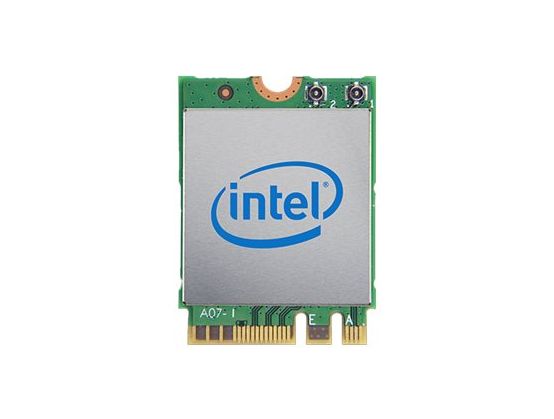

Intel Wireless-AC 9260 - Network adapter - M.2 2230 - Wi-Fi 5, Bluetooth 5.0
Manufacture#: 9260.NGWG.NV
Checking delivery…
Product details
Network adapter
M.2 2230
Wi-Fi 5, Bluetooth 5.0
Payment options available at checkout
Main features
Intel Wireless-AC 9260
Network adapter
M.2 2230
Wi-Fi 5, Bluetooth 5.0
Overview
The Intel Wireless-AC 9260 adapter supports Bluetooth 5 and 2x2 802.11ac Wi-Fi including Wave 2 features, such as 160 MHz channels, delivering up to 1.73 Gbps and downlink MU-MIMO. These features deliver a significant increase in user speeds in dense deployments, supporting fast downloads and long battery life. Combined with powerful processors and exceptional Intel wireless innovations, the Intel Wireless-AC 9260 can provide Gigabit download speed and dramatically improve your connected experience at home, work, or on the go.
Product Description
Intel Wireless-AC 9260 - network adapter - M.2 2230
Device Type
Network adapter
Form Factor
Plug-in card
Interface (Bus) Type
M.2 2230
Dimensions (WxDxH)
3 cm x 2.4 cm x 2.2 cm
Weight
2.9 g
Data Link Protocol
Wi-Fi 5, Bluetooth 5.0
Data Transfer Rate
1.73 Gbps
Compliant Standards
IEEE 802.11b, IEEE 802.11a, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, Wi-Fi CERTIFIED, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.11ac, IEEE 802.11w, IEEE 802.11r, IEEE 802.11v
System Requirements
Linux, Google Chrome OS, Windows 10
General
Device Type
Network adapter
Form Factor
Plug-in card
Interface (Bus) Type
M.2 2230
Networking
Connectivity Technology
Wireless
Data Link Protocol
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0
Data Transfer Rate
1.73 Gbps
Features
WMM support, WPS, 802.1x authentication, seamless roaming, 2x2 MU-MIMO technology
Compliant Standards
IEEE 802.11b, IEEE 802.11a, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, Wi-Fi CERTIFIED, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.11ac, IEEE 802.11w, IEEE 802.11r, IEEE 802.11v
Miscellaneous
Encryption Algorithm
TLS, PEAP, TTLS, TKIP, WPA, WPA2, AES-CCMP, WPA2-PSK, 128-bit AES-CCMP, FIPS, WPS2, EAP-SIM, EAP-AKA
Compliant Standards
UL, cUL, CB, IEC 60950-1, FISMA
Software / System Requirements
OS Required
Linux, Google Chrome OS, Windows 10
Dimensions & Weight
Width
3 cm
Depth
2.4 cm
Height
2.2 cm
Weight
2.9 g
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
80 °C
Humidity Range Operating
50 - 90% (non-condensing)
