POE PLUS SPLITTER - 802.3AT 5/7.5/9/12V DC OUTPUT
Checking delivery…
Payment options available at checkout
Main features

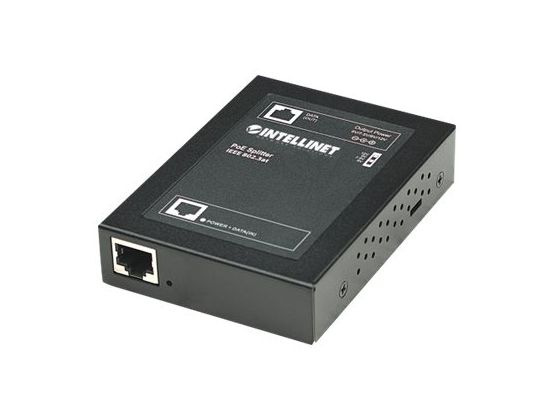

Intellinet Power over Ethernet (PoE+) Splitter, IEEE802.3at, 5, 7.5, 9 or 12 V DC output voltage
PoE splitter
black
Overview
The Intellinet Network Solutions PoE+ splitter allows you to deliver both data and electrical power to non-PoE Ethernet-enabled products using the Cat5 Ethernet cable. Using the PoE splitter, you can take advantage of Power over Ethernet and place Ethernet-enabled products.
Product Description
Intellinet Power over Ethernet (PoE+) Splitter, IEEE802.3at, 5, 7.5, 9 or 12 V DC output voltage - PoE splitter
Device Type
PoE splitter - external
Power Over Ethernet (PoE)
PoE+
Weight
240 g
Output Voltage
5 / 7.5 / 9 / 12 V
Output connectors
1 x power
Colour
Black
Dimensions (WxDxH)
7.4 cm x 10.2 cm x 2.2 cm
Manufacturer Warranty
3-year warranty
General
Device Type
PoE splitter - external
Power Over Ethernet (PoE)
PoE+ (IEEE 802.3at)
Colour
Black
Power Device
Frequency Required
50 - 60 Hz
Power Consumption Operational
25.4 Watt
Power Output Connectors Details
1 x power
Output Voltage
5 / 7.5 / 9 / 12 V
Max Electric Current
4 A
Expansion / Connectivity
Interfaces
1 x LAN - RJ-45
Miscellaneous
Cables Included
Power cable
Features
LED indicators, over voltage protection, overload protection, short-circuit protection
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3at, FCC Class A certified
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
60 °C
Humidity Range Operating
10 - 90% (non-condensing)
Dimensions & Weight
Width
7.4 cm
Depth
10.2 cm
Height
2.2 cm
Weight
240 g
