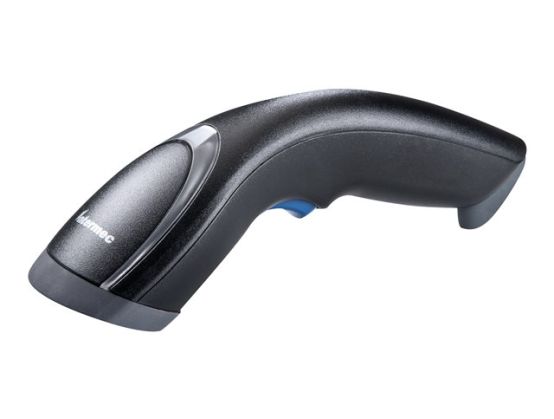

Intermec SG20B General Duty Imager - barcode scanner
Manufacture#: SG20B1D-USB002
Checking delivery…
Product details
Barcode scanner
handheld
linear imager
decoded
Payment options available at checkout
Main features
Intermec SG20B General Duty Imager
Barcode scanner
handheld
linear imager
decoded
Bluetooth 2.1 EDR
Overview
Speed up the customer checkout experience with the SG20 handheld scanner, available with the industry's fastest 2D bar code imaging technology for quick, flawless scans - every time. Ergonomically designed for the needs of countertop scanning applications in retail, office, library, and light manufacturing.
The Intermec SG20 is an affordable, high-performance handheld scanner available in a range of models suited to the demands of general purpose countertop scanning.
Product Description
Intermec SG20B General Duty Imager - barcode scanner
Type
Barcode scanner - handheld - Bluetooth 2.1 EDR - decoded
Colour
Black
Minimum Bar Width
6 mil
Scan Element Type
Linear imager
Connectivity Technology
Wireless
Wireless Connectivity
Bluetooth 2.1 EDR
Battery
Lithium Ion
Dimensions (WxDxH)
6.1 cm x 20 cm x 6.5 cm
Weight
175 g
Manufacturer Warranty
3-year warranty
General
Type
Barcode scanner - handheld
Colour
Black
Barcode
Interface Type
Bluetooth 2.1 EDR
Minimum Bar Width
6 mil
Scan Element Type
Linear imager
Scan Mode
Single-pass
Max Working Distance
50 cm
Decode Capability
Code 93, Matrix 2 of 5, Code 39, GS1 DataBar, Telepen, Codabar, Code 128, Code 11, UPC, Interleaved 2 of 5, MSI-Plessey, Code 93i, GS1 DataBar Omnidirectional, GS1 DataBar Expanded, GS1 DataBar Limited, Standard 2 of 5, GS1 DataBar Composites
TTL Decoding
Decoded
Connectivity Technology
Wireless
Networking
Wireless Connectivity
Bluetooth 2.1 EDR
Expansion / Connectivity
Interfaces
1 x USB - Type A
Miscellaneous
Included Accessories
Cradle
Cables Included
1 x USB cable - 1.83 m
Compliant Standards
UL, C-Tick, CISPR 22 Class B, EN55022, NOM, ICES-003 Class B, FCC Part 15 B, RoHS, WEEE, ANATEL, IEC 60529 IP30, REACH, CQC
Power
Power Device
Power adapter - external
Battery
Lithium Ion
Dimensions & Weight
Width
6.1 cm
Depth
20 cm
Height
6.5 cm
Weight
175 g
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)
Drop Specification
1.2 m to concrete
