video conferencing kit (touchscreen console, mini-PC)
Zoom Certified
black
Overview

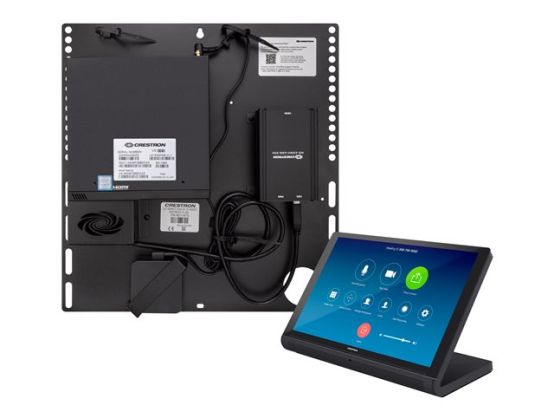

The UC-C100-Z Crestron Flex integrator kit provides a customizable video conference solution for use with Zoom Rooms software. It supports up to three video displays and features a tabletop touch screen and a pre-built UC bracket assembly.
Product DescriptionCrestron Flex UC-C100-Z - for Zoom Rooms - video conferencing kit
Device TypeVideo conferencing kit
Kit ContentTouchscreen console, mini-PC
Display10.1" TFT / 1920 x 1200
Video OutputCodec board
Input Device10.1" touchscreen (wired)
NetworkingNetwork adapter - Ethernet, Fast Ethernet
PowerAC 100-240 V (50/60 Hz)
Software CertificationZoom Certified
Extended Specification
General
Device TypeVideo conferencing kit
Kit ContentTouchscreen console, mini-PC
Dimensions & Weight DetailsTouch screen - Width 24.5 cm Depth 11.9 cm Height 13.4 cm Weight 1.105 kg ¦ Main system - Width 36.8 cm Depth 4.4 cm Height 38.1 cm
Enclosure ColourBlack
Display
TechnologyTFT active matrix
Diagonal Size10.1"
Native Resolution1920 x 1200
Monitor FeaturesTouch screen
Video Output
TypeCodec board - external
Input Device
Type10.1" touchscreen
Connectivity TechnologyWired
Networking
TypeNetwork adapter
Connectivity TechnologyWired
Data Link ProtocolEthernet, Fast Ethernet
Network / Transport ProtocolTCP/IP, UDP/IP, DHCP, SFTP, HTTPs, IPv4, IPv6
FeaturesSSH support, PoE+, EDID Pass-Through, SNMP support, CIP support
Compliant StandardsIEEE 802.1x, IEEE 802.3at
Expansion / Connectivity
InterfacesSuperSpeed USB 3.0 - 9 pin USB Type A ¦ 1 x network - Ethernet 10Base-T/100Base-TX (PoE+) - RJ-45
Miscellaneous
Cables Included1 x DisplayPort-HDMI cable - 1.8 m ¦ HDMI / USB 3.0 cable - 1.8 m ¦ 2 x network cable - 2.1 m
Mounting KitIncluded
Included AccessoriesUC engine assembly, mounting hardware
