video conferencing kit (touchscreen console, mini-PC, HDMI to USB 3.0 Converter)
black
with Wall Mounted Control Interface
Overview

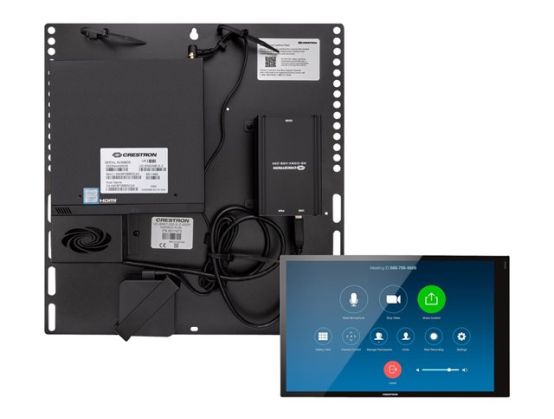

The UC-C100-Z-WM Crestron Flex integrator kit provides a customizable video conference solution for use with Zoom Rooms software. It supports up to three video displays and features a wall mount touch screen and a pre-built UC bracket assembly.
Product DescriptionCrestron Flex UC-C100-Z-WM - for Zoom Rooms - Integrator Kit - video conferencing kit - with Wall Mounted Control Interface
Device TypeVideo conferencing kit
Kit ContentTouchscreen console, mini-PC, HDMI to USB 3.0 Converter
Display10.1" TFT / 1920 x 1200
Video OutputCodec board - 1920 x 1080
Input Device10.1" touchscreen (wired)
NetworkingNetwork adapter - Ethernet, Fast Ethernet, Gigabit Ethernet
PowerAC 100-240 V (50/60 Hz)
Bundled withWall Mounted Control Interface
Extended Specification
General
Device TypeVideo conferencing kit
Kit ContentTouchscreen console, mini-PC, HDMI to USB 3.0 Converter
Dimensions & Weight DetailsTouch screen - Width 24 cm Depth 5.1 cm Height 14.9 cm Weight 730 g ¦ Main system - Width 36.8 cm Depth 4.4 cm Height 38.1 cm Weight 3 kg
Enclosure ColourBlack
Bundled withWall Mounted Control Interface
Display
TechnologyTFT active matrix
Diagonal Size10.1"
Native Resolution1920 x 1200
Monitor FeaturesTouch screen, edge-to-edge glass
Video Output
TypeCodec board - external
Max External Resolution1920 x 1080
Input Device
Type10.1" touchscreen
Connectivity TechnologyWired
Networking
TypeNetwork adapter
Connectivity TechnologyWired
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
Network / Transport ProtocolTCP/IP, UDP/IP, DHCP, SFTP, HTTPs, IPv4, IPv6
InterfacesSuperSpeed USB 3.0 - 9 pin USB Type A ¦ 1 x network - Ethernet 10Base-T/100Base-TX (PoE+) - RJ-45 ¦ 1 x network - Ethernet 100Base-TX/1000Base-T - RJ-45
Miscellaneous
Cables Included1 x DisplayPort-HDMI cable - 1.8 m ¦ 1 x HDMI cable - 1.8 m ¦ 2 x network cable - 2.1 m ¦ 1 x HDMI cable - 6.1 m
Mounting KitIncluded
Included AccessoriesUC bracket assembly, wall mount, mounting hardware, PoE injector
