Video conferencing kit (touchscreen console, camera, hub)
Overview

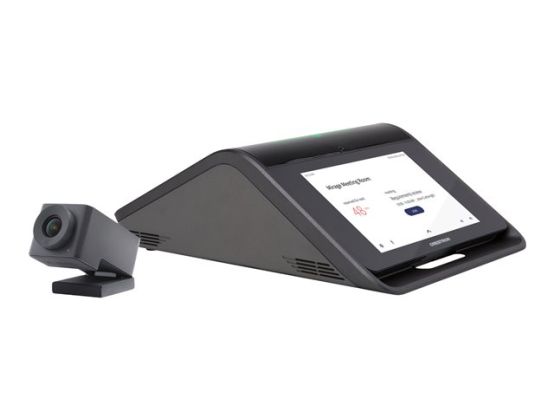

Crestron Flex UC-M50-U Tabletop Medium Room Video Conference System provides a complete video conference room solution for open-platform UC applications. It supports a single display, and features the Crestron Flex tabletop conferencing device, a collaboration camera, cables, and power supply.
Product DescriptionCrestron Flex UC-M50-U - video conferencing kit
Device TypeVideo conferencing kit
Kit ContentTouchscreen console, camera, hub
VoIP ProtocolsSIP, SDP
CodecG.711, G.722, G.729
Video InputDigital video camera - USB 3.1
Audio InputQuad array microphone
Audio OutputSpeaker(s) - mono
NetworkingNetwork adapter - Ethernet, Fast Ethernet, Bluetooth 4.0
PowerAC 100-240 V (50/60 Hz)
Extended Specification
General
Device TypeVideo conferencing kit
Kit ContentTouchscreen console, camera, hub
VoIP ProtocolsSIP, SDP
Voice CodecsG.711, G.722, G.729
Dimensions & Weight DetailsConsole - Width 22.7 cm Depth 32.4 cm Height 10.4 cm Weight 2.5 kg ¦ Camera - Width 4.1 cm Depth 7.2 cm Height 3.6 cm Weight 120 g
Features12 megapixels, noise reduction, auto gain control, 150° diagonal field of view, 120° field of view (horizontal), 90° field of view (vertical), Auto Zoom
Audio Input
TypeQuad array microphone - integrated
Audio Output
TypeSpeaker(s)
Audio AmplifierIntegrated
Output Power / Channel11 Watt
Sound Output ModeMono
Frequency Response90 - 22000 Hz
Networking
TypeNetwork adapter
Connectivity TechnologyWireless, wired
Data Link ProtocolEthernet, Fast Ethernet, Bluetooth 4.0
Expansion / Connectivity
Interfaces1 x audio / video - HDMI input - 19 pin HDMI Type A ¦ 1 x audio / video - HDMI output - 19 pin HDMI Type A ¦ 2 x network - Ethernet 10Base-T/100Base-TX - RJ-45 ¦ 1 x USB 2.0 ¦ 2 x USB host - 4 pin USB Type A ¦ 2 x microphone - RJ-9
Miscellaneous
Cables Included1 x USB-C to USB-A cable - 1.8 m ¦ 1 x IR emitter cable ¦ 1 x HDMI cable - 1.8 m ¦ 1 x network cable - 3.66 m ¦ 1 x HDMI cable - 6.1 m ¦ 1 x USB type A to micro-USB type B cable - 1.8 m ¦ 1 x USB extension cable - 4.6 m ¦ 1 x network cable - 6 m
Included AccessoriesWall mount
Compliant StandardsC-Tick, CISPR 22 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, FCC Part 15.247, RoHS, UL 60950-1, EN 60950-1, AS/NZS 4268, FCC Part 15 A, MIC Class A, A-Tick, VCCI Class A, ICES-003 issue 5 Class A, RSS-210 Issue 8, EN 55022 Class A, ETSI EN 301 489-17, RSS-Gen Issue 4, ETSI EN 301 489-1
