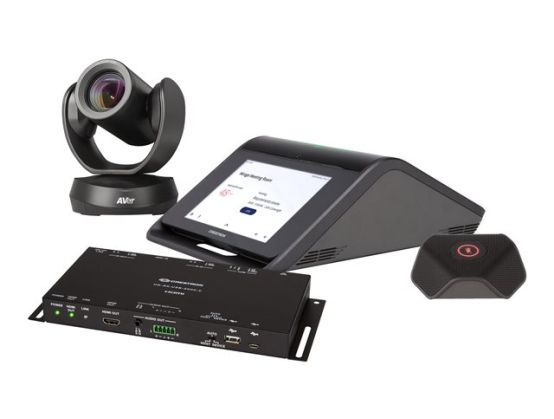

The UC-MX70-U provides a complete video conference room solution for open-platform UC applications. It supports a single display and features the Crestron Flex tabletop conference device, HDMI over CATx receiver, an enterprise-grade camera, mic pod, cables, and a power supply. TAA Compliant.
Dimensions & Weight DetailsMini-PC - Width 38.1 cm Depth 3.2 cm Height 41.9 cm ¦ Console - Width 22.7 cm Depth 32.4 cm Height 10.5 cm Weight 2.5 kg ¦ Camera - Width 15.3 cm Depth 14.3 cm Height 18.2 cm
Built-in DevicesOccupancy sensor
Enclosure ColourBlack
Display
TechnologyTFT active matrix
Diagonal Size7"
Native Resolution1280 x 800
Monitor FeaturesTouch screen
Video Input
TypeDigital camera (colour) - external
Interface TypeUSB
Digital Video Capture Resolution1920 x 1080
Video Modes1080p
Features82° field of view
Video Output
TypeCodec board - external
Max External Resolution1920 x 1080
Audio Input
Type3-microphone array - desktop
Microphone Operation ModeCardioid
Audio Output
TypeSpeaker(s)
Output Power / Channel11 Watt
Frequency Response90 - 22000 Hz
Input Device
TypeTouch-screen
Networking
TypeNetwork adapter
Connectivity TechnologyWired
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
Network / Transport ProtocolSFTP, HTTPs
FeaturesLDAP support, SSH support
Compliant StandardsIEEE 802.1x
Expansion / Connectivity
InterfacesSuperSpeed USB 3.0 - 9 pin USB Type A ¦ 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB-C ¦ Audio / video - HDMI ¦ USB 2.0 - 5 pin Micro-USB Type B
Miscellaneous
Cables Included1 x DisplayPort-HDMI cable - 1.8 m ¦ 1 x micro-USB to USB cable - 1.8 m ¦ 2 x HDMI cable - 1.8 m ¦ 1 x network cable - 2.1 m ¦ 2 x network cable - 6 m ¦ 1 x network cable - 3.66 m
Included AccessoriesWall mount, UC engine assembly
