Kingston's Data Center 500 series of solid-state drives are high-performance SATA SSDs that use 3D TLC NAND, designed for read-centric and mixed-use server workloads. They implement Kingston's strict QoS requirements to ensure predictable random I/O performance as well as predictable low latencies over a wide range of read and write workloads. They can increase productivity for AI, machine learning, big data analytics, cloud computing, software-defined storage, operational databases (ODB), database applications and data warehousing.
Predictable random I/O performance
Read-centric SSD
End-to-end protection
On-board power loss protection
Enterprise SSDDelivering on business demands for 24/7 uptime and reliability, Kingston SSDs offer high-performing storage that combines predictable performance with rigorously tested reliability. Kingston's DC500 series SSDs offer features that enable data centers to select cost-effective SSD for their workload(s). Businesses require results in order to deliver on products, solutions and service level agreements (SLAs).Read-centric SSDDC500R is a highly optimized SSD designed for read-centric workloads, enabling data centers to select SSDs tailored for workloads without overspending on more expensive write-intensive SSDs. It delivers I/O speeds and response times (latency) that a data center can deploy with confidence to ensure high levels of performance in the working application and downstream at the user interface. These are typically defined by applications that require real-time results.End-to-end protectionThe DC500 series SSDs incorporate end-to-end data path protection to help guarantee that all user data transferred into the SSD is protected against transient errors. This ensures data-in-flight is written to the NAND flash memory in the event of unexpected power loss. Additionally, PLP ensures that the drives' mapping table (FTL) is updated prior to power being removed from the drive.

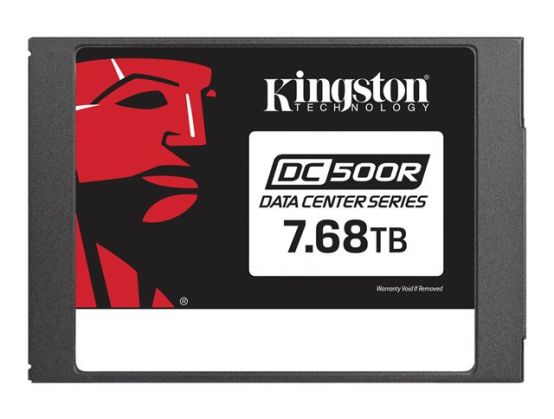

Product DescriptionKingston Data Center DC500R - SSD - 7.68 TB - SATA 6Gb/s
TypeSolid state drive - internal
Capacity7.68 TB
Hardware EncryptionYes
Encryption AlgorithmAES
NAND Flash Memory Type3D triple-level cell (TLC)
Form Factor2.5"
InterfaceSATA 6Gb/s
Data Transfer Rate600 MBps
FeaturesDynamic and Static Wear Leveling, End-to-end data path protection, Hot-Plug Support, 3D NAND Technology, Power Loss Protection (PLP), StrongECC, S.M.A.R.T., 256-bit AES
Dimensions (WxDxH)69.9 mm x 100 mm x 7 mm
Weight92.34 g
Manufacturer Warranty5-year warranty
Extended Specification
General
Device TypeSolid state drive - internal
Capacity7.68 TB
Hardware EncryptionYes
Encryption AlgorithmAES
NAND Flash Memory Type3D triple-level cell (TLC)
Form Factor2.5"
InterfaceSATA 6Gb/s
FeaturesDynamic and Static Wear Leveling, End-to-end data path protection, Hot-Plug Support, 3D NAND Technology, Power Loss Protection (PLP), StrongECC, S.M.A.R.T., 256-bit AES
Width69.9 mm
Depth100 mm
Height7 mm
Weight92.34 g
Performance
Drive Writes Per Day (DWPD)0.5
SSD Endurance9345 TB
Drive Transfer Rate600 MBps (external)
Internal Data Rate545 MBps (read) / 490 MBps (write)
