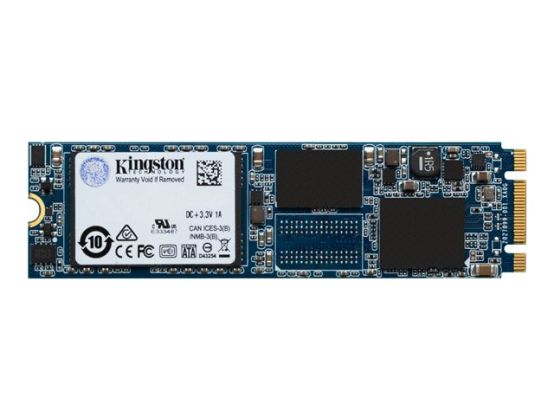

Kingston UV500 - SSD - 240 GB - SATA 6Gb/s
Manufacture#: SUV500M8/240G
Checking delivery…
Product details
SSD
encrypted
240 GB
internal
Payment options available at checkout
Main features
Kingston UV500
SSD
encrypted
240 GB
internal
M.2 2280 (double-sided)
SATA 6Gb/s
256-bit AES
Self-Encrypting Drive (SED), TCG Opal Encryption 2.0
for Intel Next Unit of Computing 11 Essential Kit
NUC11ATKPE
Overview
It's easy to find the flash memory, USB drives and accessories to maximize your mobile device. Kingston flash memory products feature fast speeds, large capacities and impressive performance.
Product Description
Kingston UV500 - SSD - 240 GB - SATA 6Gb/s
Type
Solid state drive - internal
Capacity
240 GB
Hardware Encryption
Yes
Encryption Algorithm
256-bit AES
NAND Flash Memory Type
3D triple-level cell (TLC)
Form Factor
M.2 2280 (double-sided)
Interface
SATA 6Gb/s
Data Transfer Rate
600 MBps
Features
Marvell 88SS1074 controller, 256-bit AES
Dimensions (WxDxH)
22 mm x 80 mm x 3.5 mm
Weight
6.7 g
Manufacturer Warranty
5-year warranty
Designed For
Intel Next Unit of Computing 11 Essential Kit - NUC11ATKPE
General
Device Type
Solid state drive - internal
Capacity
240 GB
Hardware Encryption
Yes
Encryption Algorithm
256-bit AES
NAND Flash Memory Type
3D triple-level cell (TLC)
Form Factor
M.2 2280 (double-sided)
Interface
SATA 6Gb/s
Features
Marvell 88SS1074 controller, 256-bit AES
Width
22 mm
Depth
80 mm
Height
3.5 mm
Weight
6.7 g
Performance
SSD Endurance
100 TB
Drive Transfer Rate
600 MBps (external)
Internal Data Rate
520 MBps (read) / 500 MBps (write)
Maximum 4KB Random Write
25000 IOPS
Maximum 4KB Random Read
79000 IOPS
Reliability
MTBF
1,000,000 hours
Expansion & Connectivity
Interfaces
1 x SATA 6 Gb/s - M.2 Card
Compatible Bay
M.2 2280 (double-sided)
Power
Power Consumption
0.5 Watt (average) ¦ 0.195 Watt (idle) ¦ 1.17 Watt (read) ¦ 2.32 Watt (write)
Manufacturer Warranty
Service & Support
Limited warranty - 5 years ¦ Technical support
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
70 °C
Min Storage Temperature
-40 °C
Max Storage Temperature
85 °C
Vibration Tolerance (operating)
2.17 g @ 7-800 Hz
Vibration Tolerance (non-operating)
20 g @ 10-2000 Hz
Compatibility Information
Designed For
Intel Next Unit of Computing 11 Essential Kit - NUC11ATKPE
