EXCERIA NVMETM GEN 2 1TB M.2 2280
Manufacture#: LRC20Z001TG8
Checking delivery…
Product details
SSD
1 TB
internal
M.2 2280
Payment options available at checkout
Main features

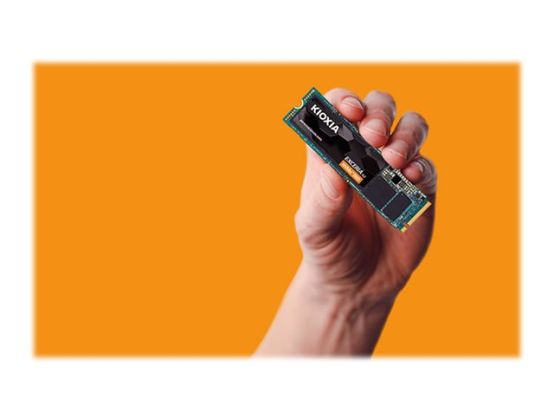

KIOXIA EXCERIA G2 LRC20Z001TG8
SSD
1 TB
internal
M.2 2280
PCIe 3.1 x4 (NVMe)
Overview
The new 2nd generation KIOXIA EXCERIA G2 SSD Series takes performance to the next level with up to 2,100 MB/s of sequential read speed, enabling faster boot ups, file transfers and system responsiveness. Leveraging BiCS FLASH 3D flash memory, this updated mainstream-class SSD series now offers up to 2TB of capacity in a M.2 2280 form factor suitable for both desktops and notebooks.
Product Description
KIOXIA EXCERIA G2 LRC20Z001TG8 - SSD - 1 TB - PCIe 3.1 x4 (NVMe)
Type
Solid state drive - internal
Capacity
1 TB
NAND Flash Memory Type
Triple-level cell (TLC)
Form Factor
M.2 2280
Interface
PCIe 3.1 x4 (NVMe)
Features
NVM Express (NVMe) 1.3c, 3D BiCS Flash, TRIM support, Idle Time Garbage Collection
Dimensions (WxDxH)
22.15 mm x 80.15 mm x 2.23 mm
Weight
6.8 g
Localisation
Worldwide
Manufacturer Warranty
5-year warranty
General
Device Type
Solid state drive - internal
Capacity
1 TB
NAND Flash Memory Type
Triple-level cell (TLC)
Form Factor
M.2 2280
Interface
PCIe 3.1 x4 (NVMe)
Features
NVM Express (NVMe) 1.3c, 3D BiCS Flash, TRIM support, Idle Time Garbage Collection
Width
22.15 mm
Depth
80.15 mm
Height
2.23 mm
Weight
6.8 g
Performance
SSD Endurance
400 TB
Internal Data Rate
2100 MBps (read) / 1700 MBps (write)
Maximum 4KB Random Write
400000 IOPS
Maximum 4KB Random Read
400000 IOPS
Reliability
MTBF
1,500,000 hours
Expansion & Connectivity
Interfaces
1 x PCI Express 3.1 x4 (NVMe) - M.2 M key
Compatible Bay
M.2 2280
Power
Power Consumption
3.5 Watt (active)
Miscellaneous
Localisation
Worldwide
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
85 °C
Min Storage Temperature
-40 °C
Max Storage Temperature
85 °C
