The advanced design and the use of high-quality components mean that Kolink has been able to produce an efficient and high-performance power supply in the form of the Enclave 80 PLUS Gold 600W. To this end, the manufacturer has opted for LLC transformers and DC-DC technology alongside independent voltage regulation. This combination also provides benefits to the unit's operating efficiency as well as the precision with which voltages are regulated, particularly when it comes to asymmetric loads.
As a result, the Enclave is capable of outputting nearly its entire rated power delivery through the +12 Volt rail if necessary. This can be up to 48A and means that all your high-performance components are kept well-supplied with all the power they need.

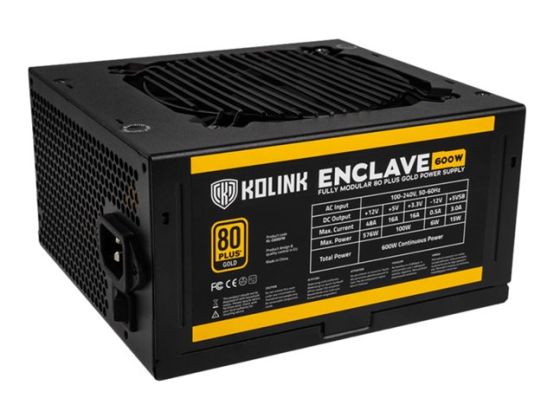

Product DescriptionKolink Enclave 600W - power supply - 600 Watt
Device TypePower supply - active Power Factor Correction (PFC) - internal
Specification ComplianceATX12V 2.3/ EPS12V
80 PLUS Certification80 PLUS Gold
Input VoltageAC 200-240 V
Output Voltage+3.3, +5, ±12 V
Power Capacity600 Watt
Output connectors1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 8 x 15 pin Serial ATA power ¦ 4 x 4 PIN internal power
Modular Cable ManagementYes
Cooling System120 mm fan
ColourBlack
Dimensions (WxDxH)15 cm x 16 cm x 8.6 cm
Manufacturer Warranty3-year warranty
Extended Specification
General
Device TypePower supply - active Power Factor Correction (PFC) - internal
Specification ComplianceATX12V 2.3/ EPS12V
PSU Form FactorATX
ColourBlack
Power Device
Input VoltageAC 200-240 V
Frequency Required50/60 Hz
Power Output Connectors Details1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 8 x 15 pin Serial ATA power ¦ 4 x 4 PIN internal power
Output Voltage+3.3, +5, ±12 V
Power Capacity600 Watt
Output Current+3.3V - 16 A ¦ +5V - 16 A ¦ +12V - 48 A ¦ -12V - 0.5 A ¦ +5VSB - 3 A
Efficiency87% at 20% Load, 90% at 50% Load, 87% at 100% Load
Modular Cable ManagementYes
80 PLUS Certification80 PLUS Gold
Miscellaneous
Cooling System120 mm fan
FeaturesOver current protection, over voltage protection, overload protection, undervoltage protection, short-circuit protection, rifle bearing cooling fan, fully modular
