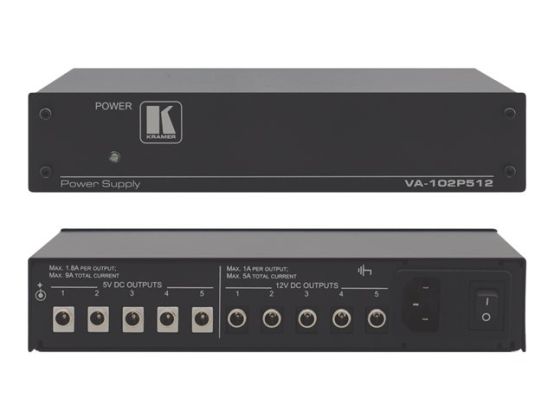

Kramer VA-102P512 - power supply
Checking delivery…
Product details
Power supply
AC 100-240 V
output connectors: 10
1U
Payment options available at checkout
Main features
Kramer VA-102P512
Power supply
AC 100-240 V
output connectors: 10
1U
19"
Overview
The VA-102P-512 is a power supply for 5 V/12 V DC powered devices. It can supply 5 V DC at up to 10 A to power up to five Kramer 5 V DC products and 12 V DC at up to 5 A to power up to five Kramer products that use external 12 V DC power supplies.
Size - compact desktop - 2 units can be rack mounted side-by-side in a 1U rack space with the optional RK-1 adapter
High-population installations of 5 V/12 V DC devices in rack mounts
Product Description
Kramer VA-102P512 - power supply
Device Type
Power supply - external
Rack Size
19" - 1U
Weight
1.1 kg
Input Voltage
AC 100-240 V
Output Voltage
5 / 12 V
Output connectors
5 x power DC jack - 5 V 2 A ¦ 5 x power DC jack - 12 V 1 A
Dimensions (WxDxH)
21.5 cm x 17.4 cm x 4.4 cm
General
Device Type
Power supply - external
Height (Rack Units)
1U
Rack Size
19"
Power Device
Input Voltage
AC 100-240 V
Power Output Connectors Details
5 x power DC jack - 5 V 2 A ¦ 5 x power DC jack - 12 V 1 A
Output Voltage
5 / 12 V
Electric Current per Port
1 A, 2 A
Miscellaneous
Cables Included
10 x power cable - external - 95 cm ¦ Power cable - external
Rack Mounting Kit
Optional
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90% (non-condensing)
Dimensions & Weight
Width
21.5 cm
Depth
17.4 cm
Height
4.4 cm
Weight
1.1 kg
