A4 (210 x 297 mm), Legal (216 x 356 mm) (original)
A4/Legal (media)
up to 20 ppm (copying)
up to 20 ppm (printing)
250 sheets
33.6 Kbps
USB 2.0
Overview

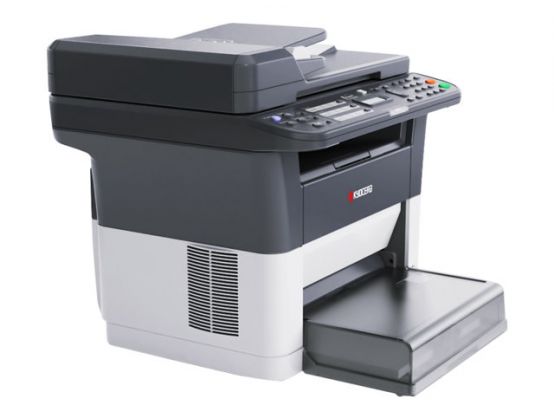

The FS-1320MFP is designed for easy operation, low noise and compact size. It focus on essential functionalities, including print, copy, scan and fax capabilities as standard, which makes them ideally suited for personal, home office and small business users.
Up to 20 pages per minute in A4
1,200 dpi resolution
Compact size, small footprint, low weight
250-sheet universal cassette
Exceptionally low printing costs in its class
The Kyocera NetViewerThe Kyocera NetViewer enables complete monitoring and control of all ECOSYS printers and digital Kyocera multifunction units from any Windows PC and thus provides ideal network administration. It also supports the standardized SNMP protocol.Status monitor and command centerThe status monitor shows the current printers condition and gives direct access to the command center for the modification of settings that are not contained in the drivers.
Original SizeA4 (210 x 297 mm), Legal (216 x 356 mm) (max)
Original TypeSheets
Document Feeder Capacity40 sheets
Media Size70 x 148 mm (min) - Legal (216 x 356 mm), A4 (210 x 297 mm) (max)
Media TypePlain paper
Standard Media Capacity250 sheets
Output Trays Capacity100 sheets
Connection AvailabilityYes
InterfaceUSB 2.0
PowerAC 230 V (50/60Hz)
Dimensions (WxDxH)39 cm x 36.1 cm x 36.2 cm
Weight9.7 kg
Environmental StandardsENERGY STAR Qualified, Blue Angel
Extended Specification
General
Device TypeMultifunction printer
Fax TypePlain paper
Printing TechnologyLaser - monochrome
Monthly Duty Cycle (max)20000 pages
Display2 lines
Connection AvailabilityYes
InterfaceUSB 2.0
Memory
Standard Memory64 MB
Copying
Max Copying SpeedUp to 20 ppm
Max Copying ResolutionUp to 600 x 600 dpi
Max Document Enlargement400%
Max Document Reduction25%
Maximum Copies99
Exposure ModesText, photo, text and photo
Copying Features2 on 1, 4 on 1, ID Card Copy, electronic sorting
Printing
Max Printing ResolutionUp to 1800 x 600 dpi
Max Printing SpeedUp to 20 ppm
First Print Out Time B/W8.5 sec
Scanning
Optical Resolution600 x 600 dpi
Grayscale Depth8-bit
Fax Machine
CompatibilitySuper G3
Max Transmission Speed33.6 Kbps
Data Compression SystemMH, MR, MMR
Fax Machine Features
One-Touch Dialing3 station(s)
Broadcast TransmissionYes
Document & Media Handling
Max Original SizeA4 (210 x 297 mm), Legal (216 x 356 mm)
Original TypeSheets
Document Feeder Capacity40 sheets
Min Media Size70 x 148 mm
Max Media SizeA4/Legal
Min Media Weight60 g/m²
Max Media Weight220 g/m²
Supported Media TypePlain paper
Supported Media SizesANSI A (Letter) (216 x 279 mm), Legal (216 x 356 mm), A4 (210 x 297 mm), A5 (148 x 210 mm), B5 (176 x 250 mm), A6 (105 x 148 mm)
Standard Media Capacity250 sheets
Output Trays Capacity100 sheets
Document & Media Handling DetailsInput tray - 250 sheets size: 70 x 148 mm - Legal (216 x 356 mm) weight: 60 g/m² - 220 g/m² ¦ ADF - 40 sheets - Legal (216 x 356 mm) ¦ Output tray - 100 sheets
Speed DetailsPrinting: up to 20 ppm (A4) - B/W ¦ Copying: up to 20 ppm (A4) - B/W ¦ Scanning: up to 18 ipm (A4) - B/W ¦ Scanning: up to 6 ipm (A4) - colour
Connections
Interfaces1 x USB 2.0 - 4 pin USB Type B
Operating System SupportMS Windows XP, MS Windows Server 2003, MS Windows 7, MS Windows Vista, MS Windows Server 2008, MS Windows Server 2008 R2, Windows 8
Power
Voltage RequiredAC 230 V (50/60Hz)
Power Consumption Operational307 Watt
Power Consumption Standby7 Watt
Power Consumption Sleep3 Watt
Miscellaneous
Warm-Up Time28 sec
First Copy Out Time B/W14 sec
Consumables Included1 x toner cartridge (black) - up to 700 pages
