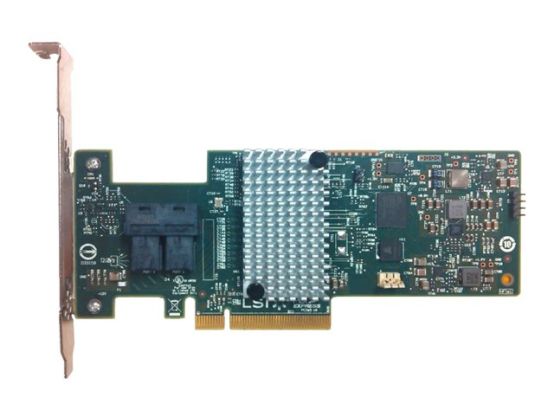

Lenovo ThinkServer RAID 520i Adapter - Storage controller (RAID) - 8 Channel - SATA / SAS 12Gb/s - low profile - RAID 0, 1, 10, JBOD - PCIe 3.0 x8 - for ThinkServer RD350, RD450, RD550, RD650, RS160, TD350, TS150, TS460
Checking delivery…
Product details
- Storage controller (RAID)
- 8 Channel
- SATA / SAS 12Gb/s
- low profile
Payment options available at checkout
Main features
- Lenovo ThinkServer RAID 520i Adapter
- Storage controller (RAID)
- 8 Channel
- SATA / SAS 12Gb/s
- low profile
- RAID 0, 1, 10, JBOD
- PCIe 3.0 x8
- for ThinkServer RD350; RD450; RD550; RD650; RS160; TD350; TS150; TS460
Overview
ThinkServer always meets the demand for performance enhancement and feature enablement.
Product Description
Lenovo ThinkServer RAID 520i Adapter - storage controller (RAID) - SATA / SAS 12Gb/s - PCIe 3.0 x8
Device Type
Storage controller (RAID) - plug-in card - low profile
Bus Type
PCIe 3.0 x8
Interface
SATA / SAS 12Gb/s
Data Transfer Rate
12 Gbit/s
Supported Devices
Hard drive, disk array (RAID), solid state drive
Channel Qty
8
Max Storage Devices Qty
8
RAID Level
RAID 0, RAID 1, RAID 10, JBOD
Manufacturer Warranty
1-year warranty
Designed For
ThinkServer RD350; RD450; RD550; RD650; RS160; TD350; TS150; TS460
General
Device Type
Storage controller (RAID) - plug-in card - low profile
Host Bus
PCIe 3.0 x8
Storage Controller
Interface
SATA / SAS 12Gb/s
Data Transfer Rate
12 Gbit/s
Supported Devices
Hard drive, disk array (RAID), solid state drive
Channel Qty
8
Max Storage Devices Qty
8
RAID Level
RAID 0, RAID 1, RAID 10, JBOD
Processor
LSI LSISAS3008
Expansion / Connectivity
Interfaces
2 x SAS 12Gb/s - 4 x Mini SAS HD (SFF-8643) (internal)
Manufacturer Warranty
Service & Support
Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
55 °C
Compatibility Information
Designed For
Lenovo ThinkServer RD350 ¦ Lenovo ThinkServer RD450 ¦ Lenovo ThinkServer RD550 ¦ Lenovo ThinkServer RD650 ¦ Lenovo ThinkServer RS160 ¦ Lenovo ThinkServer TD350 ¦ Lenovo ThinkServer TS150 ¦ Lenovo ThinkServer TS460
