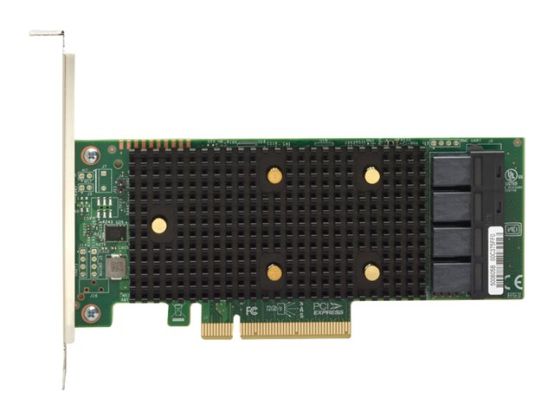

Lenovo ThinkSystem 430-16i - storage controller - SATA / SAS 12Gb/s - PCIe 3.0 x8

Name: Lenovo ThinkSystem 430-16i - storage controller - SATA / SAS 12Gb/s - PCIe 3.0 x8
Brand: LENOVO
SKU: 1TACCRAC-017804
Price: 406.97 GBP
Availability: OutOfStock

SKU

1TACCRAC-017804

Manufacture#: 7Y37A01089

£339.14

£406.97 inc VAT

Checking delivery…

Product details

Storage controller
16 Channel
SATA / SAS 12Gb/s
low profile

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

Lenovo ThinkSystem 430-16i
Storage controller
16 Channel
SATA / SAS 12Gb/s
low profile
PCIe 3.0 x8
for ThinkAgile MX3330-F Appliance; MX3330-H Appliance; MX3331-F Certified Node

Overview

Lenovo ThinkSystem 430-16i - storage controller - SATA / SAS 12Gb/s - PCIe 3.0 x8

Specification

Product Description Lenovo ThinkSystem 430-16i - storage controller - SATA / SAS 12Gb/s - PCIe 3.0 x8

Device Type Storage controller - plug-in card - low profile

Bus Type PCIe 3.0 x8

Interface SATA / SAS 12Gb/s

Data Transfer Rate 12 Gbit/s

Supported Devices Hard drive, solid state drive

Channel Qty 16

Max Storage Devices Qty 16

System Requirements SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, Red Hat Linux Enterprise Server 6 x64 Edition, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 7, SUSE LINUX Enterprise Server 11 with Xen for AMD64/EM64T, SuSE Linux Enterprise Server 12, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 12 with Xen, Microsoft Windows Server 2016, VMware vSphere 6.5 (ESXi)

Manufacturer Warranty 1-year warranty

Designed For ThinkAgile HX33XX Appliance; HX33XX Certified Node; HX5530 Appliance; HX5531 Certified Node; HX7530 Appliance; HX7531 Certified Node; MX3330-F Appliance; MX3330-H Appliance; MX3331-F Certified Node; MX3331-H Certified Node; MX3530-H Hybrid Appliance; MX3531-H Hybrid Certified Node

General

Device Type Storage controller - plug-in card - low profile

Host Bus PCIe 3.0 x8

Storage Controller

Interface SATA / SAS 12Gb/s

Data Transfer Rate 12 Gbit/s

Supported Devices Hard drive, solid state drive

Channel Qty 16

Max Storage Devices Qty 16

Processor LSI LSISAS3416

Expansion / Connectivity

Interfaces 4 x SAS 12Gb/s - 4 x Mini SAS HD (SFF-8643) (internal)

Miscellaneous

Features DDF compliant Configuration on Disk (COD), Online Capacity Expansion (OCE), Online RAID Level Migration (RLM), S.M.A.R.T. support

Compliant Standards EN55022, EN55024, ICES-003 Class B, RoHS, WEEE, FCC Part 15 A, VCCI V-3, AS/NZS CISPR 22, CNS 13438, FCC CFR47 Part 15 B Class B, IEC/EN/UL 60950

Software / System Requirements

OS Required SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, Red Hat Linux Enterprise Server 6 x64 Edition, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 7, SUSE LINUX Enterprise Server 11 with Xen for AMD64/EM64T, SuSE Linux Enterprise Server 12, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 12 with Xen, Microsoft Windows Server 2016, VMware vSphere 6.5 (ESXi)

Manufacturer Warranty

Service & Support Limited warranty - 1 year

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 55 °C

Humidity Range Operating 20 - 90% (non-condensing)

Compatibility Information

Designed For Lenovo ThinkAgile HX3330 Appliance 7Z85 ¦ Lenovo ThinkAgile HX3331 Certified Node 7D52 ¦ Lenovo ThinkAgile HX3375 Appliance 7D5U ¦ Lenovo ThinkAgile HX3376 Certified Node 7D5U ¦ Lenovo ThinkAgile HX5530 Appliance 7Z82 ¦ Lenovo ThinkAgile HX5531 Certified Node 7Z84 ¦ Lenovo ThinkAgile HX7530 Appliance 7Z82 ¦ Lenovo ThinkAgile HX7531 Certified Node 7Z84 ¦ Lenovo ThinkAgile MX3330-F Appliance 7D19 ¦ Lenovo ThinkAgile MX3330-H Appliance 7D19 ¦ Lenovo ThinkAgile MX3331-F Certified Node 7D67 ¦ Lenovo ThinkAgile MX3331-H Certified Node 7D67 ¦ Lenovo ThinkAgile MX3530-H Hybrid Appliance 7D6B ¦ Lenovo ThinkAgile MX3531-H Hybrid Certified Node 7D66 ¦ Lenovo ThinkAgile VX 2U Certified Node 7Y94 ¦ Lenovo ThinkAgile VX Certified Node 7Y94 ¦ Lenovo ThinkAgile VX3320 Appliance 7Y93 ¦ Lenovo ThinkAgile VX3330 Appliance 7Z62 ¦ Lenovo ThinkAgile VX3331 7Z62 ¦ Lenovo ThinkAgile VX3520-G Appliance 7Y94 ¦ Lenovo ThinkAgile VX3530-G Appliance 7Z63 ¦ Lenovo ThinkAgile VX5520 Appliance 7Y94 ¦ Lenovo ThinkAgile VX5530 Appliance 7Z63 ¦ Lenovo ThinkAgile VX7520 Appliance 7Y94 ¦ Lenovo ThinkAgile VX7530 Appliance 7Z63 ¦ Lenovo ThinkAgile VX7531 Certified Node 7Z63 ¦ Lenovo ThinkSystem SR250 ¦ Lenovo ThinkSystem SR550 ¦ Lenovo ThinkSystem SR570 ¦ Lenovo ThinkSystem SR590 ¦ Lenovo ThinkSystem SR630 ¦ Lenovo ThinkSystem SR630 V2 7Z71 ¦ Lenovo ThinkSystem SR645 7D2X ¦ Lenovo ThinkSystem SR650 ¦ Lenovo ThinkSystem SR650 V2 7D15, 7Z73 ¦ Lenovo ThinkSystem SR665 7D2V, 7D2W ¦ Lenovo ThinkSystem SR850 ¦ Lenovo ThinkSystem SR850 V2 7D32 ¦ Lenovo ThinkSystem SR860 ¦ Lenovo ThinkSystem SR860 V2 7Z60 ¦ Lenovo ThinkSystem SR950 ¦ Lenovo ThinkSystem ST250 ¦ Lenovo ThinkSystem ST550 ¦ Lenovo ThinkSystem ST650 V2 7Z74, 7Z75
