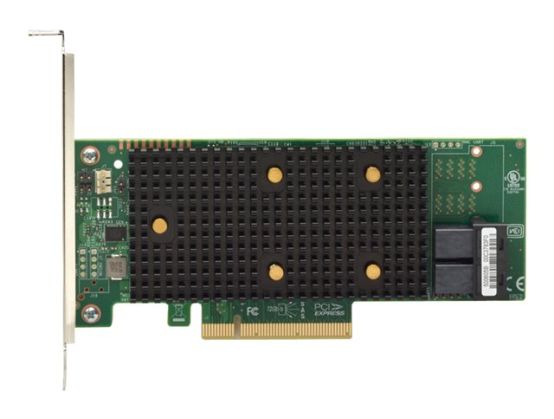

Lenovo ThinkSystem 430-8i - Storage controller - 8 Channel - SATA / SAS 12Gb/s - low profile - PCIe 3.0 x8 - for ThinkAgile MX3330-F Appliance, MX3330-H Appliance, MX3331-F Certified Node
Checking delivery…
Product details
Storage controller
8 Channel
SATA / SAS 12Gb/s
low profile
Payment options available at checkout
Main features
Lenovo ThinkSystem 430-8i
Storage controller
8 Channel
SATA / SAS 12Gb/s
low profile
PCIe 3.0 x8
for ThinkAgile MX3330-F Appliance; MX3330-H Appliance; MX3331-F Certified Node
Overview
Lenovo ThinkSystem 430-8i - storage controller - SATA / SAS 12Gb/s - PCIe 3.0 x8
Product Description
Lenovo ThinkSystem 430-8i - storage controller - SATA / SAS 12Gb/s - PCIe 3.0 x8
Device Type
Storage controller - plug-in card - low profile
Bus Type
PCIe 3.0 x8
Interface
SATA / SAS 12Gb/s
Data Transfer Rate
12 Gbit/s
Supported Devices
Hard drive, solid state drive
Channel Qty
8
Max Storage Devices Qty
8
System Requirements
SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, Red Hat Linux Enterprise Server 6 x64 Edition, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 7, SUSE LINUX Enterprise Server 11 with Xen for AMD64/EM64T, SuSE Linux Enterprise Server 12, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 12 with Xen, Microsoft Windows Server 2016, VMware vSphere 6.5 (ESXi)
Manufacturer Warranty
1-year warranty
Designed For
ThinkAgile HX1330 Appliance; HX1331 Certified Node; HX2330 Appliance; HX2331 Certified Node; HX7530 Appliance; HX7531 Certified Node; MX3330-F Appliance; MX3330-H Appliance; MX3331-F Certified Node; MX3331-H Certified Node; MX3530-H Hybrid Appliance; MX3531-H Hybrid Certified Node
General
Device Type
Storage controller - plug-in card - low profile
Host Bus
PCIe 3.0 x8
Storage Controller
Interface
SATA / SAS 12Gb/s
Data Transfer Rate
12 Gbit/s
Supported Devices
Hard drive, solid state drive
Channel Qty
8
Max Storage Devices Qty
8
Processor
LSI LSISAS3408
Expansion / Connectivity
Interfaces
2 x SAS 12Gb/s - 4 x Mini SAS HD (SFF-8643) (internal)
Miscellaneous
Features
DDF compliant Configuration on Disk (COD), Cyclical Redundancy Check (CRC), S.M.A.R.T. support
Compliant Standards
EN55022, EN55024, ICES-003 Class B, RoHS, WEEE, FCC Part 15 A, VCCI V-3, AS/NZS CISPR 22, CNS 13438, FCC CFR47 Part 15 B Class B, IEC/EN/UL 60950
Software / System Requirements
OS Required
SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, Red Hat Linux Enterprise Server 6 x64 Edition, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 7, SUSE LINUX Enterprise Server 11 with Xen for AMD64/EM64T, SuSE Linux Enterprise Server 12, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 12 with Xen, Microsoft Windows Server 2016, VMware vSphere 6.5 (ESXi)
Manufacturer Warranty
Service & Support
Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
55 °C
Humidity Range Operating
20 - 90% (non-condensing)
Compatibility Information
Designed For
Lenovo ThinkAgile HX1330 Appliance 7Z85 ¦ Lenovo ThinkAgile HX1331 Certified Node 7D52 ¦ Lenovo ThinkAgile HX2330 Appliance 7Z85 ¦ Lenovo ThinkAgile HX2331 Certified Node 7D52 ¦ Lenovo ThinkAgile HX7530 Appliance 7Z82 ¦ Lenovo ThinkAgile HX7531 Certified Node 7Z84 ¦ Lenovo ThinkAgile MX3330-F Appliance 7D19 ¦ Lenovo ThinkAgile MX3330-H Appliance 7D19 ¦ Lenovo ThinkAgile MX3331-F Certified Node 7D67 ¦ Lenovo ThinkAgile MX3331-H Certified Node 7D67 ¦ Lenovo ThinkAgile MX3530-H Hybrid Appliance 7D6B ¦ Lenovo ThinkAgile MX3531-H Hybrid Certified Node 7D66 ¦ Lenovo ThinkAgile VX 1U Certified Node 7Y93 ¦ Lenovo ThinkAgile VX 2U Certified Node 7Y94 ¦ Lenovo ThinkAgile VX Certified Node 7Y94 ¦ Lenovo ThinkAgile VX2320 Appliance 7Y93 ¦ Lenovo ThinkAgile VX2330 Appliance 7Z62 ¦ Lenovo ThinkAgile VX3330 Appliance 7Z62 ¦ Lenovo ThinkAgile VX3331 7Z62 ¦ Lenovo ThinkAgile VX3530-G Appliance 7Z63 ¦ Lenovo ThinkAgile VX5530 Appliance 7Z63 ¦ Lenovo ThinkAgile VX7520 Appliance 7Y94 ¦ Lenovo ThinkAgile VX7530 Appliance 7Z63 ¦ Lenovo ThinkSystem SR250 ¦ Lenovo ThinkSystem SR530 ¦ Lenovo ThinkSystem SR550 ¦ Lenovo ThinkSystem SR570 ¦ Lenovo ThinkSystem SR590 ¦ Lenovo ThinkSystem SR630 ¦ Lenovo ThinkSystem SR630 V2 7Z71 ¦ Lenovo ThinkSystem SR645 7D2X ¦ Lenovo ThinkSystem SR650 ¦ Lenovo ThinkSystem SR650 V2 7D15, 7Z73 ¦ Lenovo ThinkSystem SR665 7D2V, 7D2W ¦ Lenovo ThinkSystem SR670 V2 7Z23 ¦ Lenovo ThinkSystem SR850 ¦ Lenovo ThinkSystem SR850 V2 7D32 ¦ Lenovo ThinkSystem SR860 ¦ Lenovo ThinkSystem SR860 V2 7Z60 ¦ Lenovo ThinkSystem SR950 ¦ Lenovo ThinkSystem ST250 ¦ Lenovo ThinkSystem ST50 ¦ Lenovo ThinkSystem ST550 ¦ Lenovo ThinkSystem ST650 V2 7Z74, 7Z75
