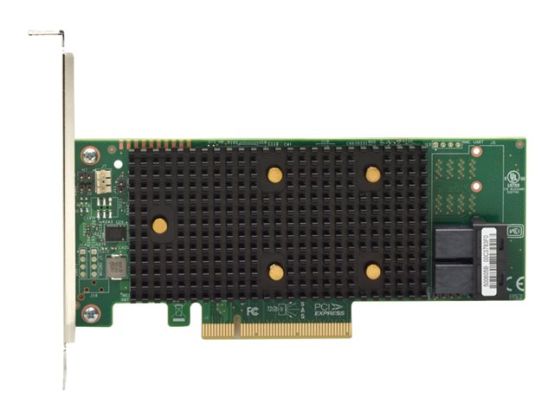

Lenovo ThinkSystem 530-8i - storage controller (RAID) - SATA / SAS 12Gb/s - PCIe 3.0 x8

Name: Lenovo ThinkSystem 530-8i - storage controller (RAID) - SATA / SAS 12Gb/s - PCIe 3.0 x8
Brand: LENOVO
SKU: 1TACCRAC-017447
Price: 331.4 GBP
Availability: OutOfStock

SKU

1TACCRAC-017447

Manufacture#: 7Y37A01082

£276.17

£331.40 inc VAT

Checking delivery…

Product details

Storage controller (RAID)
8 Channel
SATA / SAS 12Gb/s
low profile

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

Lenovo ThinkSystem 530-8i
Storage controller (RAID)
8 Channel
SATA / SAS 12Gb/s
low profile
RAID 0, 1, 5, 10, 50, JBOD
PCIe 3.0 x8
for ThinkSystem SR630 V2; SR645; SR650 V2; SR665; SR670 V2; SR850 V2; SR860 V2; ST50; ST650 V2

Overview

Lenovo ThinkSystem 530-8i - storage controller (RAID) - SATA / SAS 12Gb/s - PCIe 3.0 x8

Specification

Product Description Lenovo ThinkSystem 530-8i - storage controller (RAID) - SATA / SAS 12Gb/s - PCIe 3.0 x8

Device Type Storage controller (RAID) - plug-in card - low profile

Bus Type PCIe 3.0 x8

Interface SATA / SAS 12Gb/s

Data Transfer Rate 12 Gbit/s

Supported Devices Disk array (RAID)

Channel Qty 8

Max Storage Devices Qty 8

RAID Level RAID 0, RAID 1, RAID 5, RAID 10, RAID 50, JBOD

System Requirements SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, Red Hat Linux Enterprise Server 6 x64 Edition, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 7, SUSE LINUX Enterprise Server 11 with Xen for AMD64/EM64T, SuSE Linux Enterprise Server 12, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 12 with Xen, Microsoft Windows Server 2016, VMware vSphere 6.5 (ESXi)

Manufacturer Warranty 1-year warranty

Designed For ThinkSystem SR250; SR530; SR550; SR570; SR590; SR630; SR630 V2 7Z71; SR645 7D2X; SR650; SR650 V2 7D15, 7Z73; SR665 7D2V, 7D2W; SR670 V2 7Z23; SR850; SR850 V2 7D32; SR860; SR860 V2 7Z60; SR950; ST250; ST50; ST550; ST650 V2 7Z74, 7Z75

General

Device Type Storage controller (RAID) - plug-in card - low profile

Host Bus PCIe 3.0 x8

Storage Controller

Interface SATA / SAS 12Gb/s

Data Transfer Rate 12 Gbit/s

Supported Devices Disk array (RAID)

Channel Qty 8

Max Storage Devices Qty 8

RAID Level RAID 0, RAID 1, RAID 5, RAID 10, RAID 50, JBOD

Processor LSI LSISAS3408

Expansion / Connectivity

Interfaces 2 x SAS 12Gb/s - 4 x Mini SAS HD (SFF-8643) (internal)

Miscellaneous

Features Online Capacity Expansion (OCE), Online RAID Level Migration (RLM), FastPath, SafeStore

Compliant Standards EN55022, EN55024, ICES-003 Class B, RoHS, WEEE, FCC Part 15 A, VCCI V-3, AS/NZS CISPR 22, CNS 13438, FCC CFR47 Part 15 B Class B, IEC/EN/UL 60950

Software / System Requirements

OS Required SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, Red Hat Linux Enterprise Server 6 x64 Edition, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 7, SUSE LINUX Enterprise Server 11 with Xen for AMD64/EM64T, SuSE Linux Enterprise Server 12, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 12 with Xen, Microsoft Windows Server 2016, VMware vSphere 6.5 (ESXi)

Manufacturer Warranty

Service & Support Limited warranty - 1 year

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 55 °C

Humidity Range Operating 20 - 90% (non-condensing)

Compatibility Information

Designed For Lenovo ThinkSystem SR250 ¦ Lenovo ThinkSystem SR530 ¦ Lenovo ThinkSystem SR550 ¦ Lenovo ThinkSystem SR570 ¦ Lenovo ThinkSystem SR590 ¦ Lenovo ThinkSystem SR630 ¦ Lenovo ThinkSystem SR630 V2 7Z71 ¦ Lenovo ThinkSystem SR645 7D2X ¦ Lenovo ThinkSystem SR650 ¦ Lenovo ThinkSystem SR650 V2 7D15, 7Z73 ¦ Lenovo ThinkSystem SR665 7D2V, 7D2W ¦ Lenovo ThinkSystem SR670 V2 7Z23 ¦ Lenovo ThinkSystem SR850 ¦ Lenovo ThinkSystem SR850 V2 7D32 ¦ Lenovo ThinkSystem SR860 ¦ Lenovo ThinkSystem SR860 V2 7Z60 ¦ Lenovo ThinkSystem SR950 ¦ Lenovo ThinkSystem ST250 ¦ Lenovo ThinkSystem ST50 ¦ Lenovo ThinkSystem ST550 ¦ Lenovo ThinkSystem ST650 V2 7Z74, 7Z75
