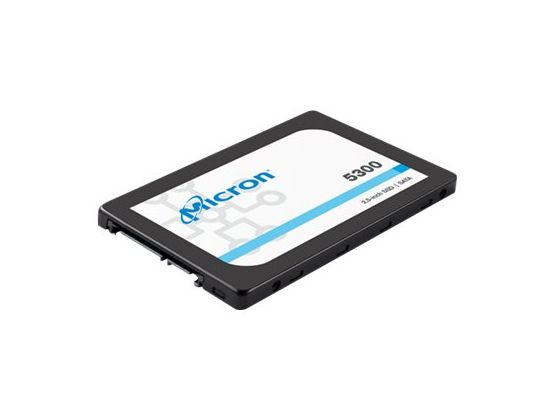

The ThinkSystem 5300 Mainstream SATA 6Gb solid-state drives (SSDs) use Micron 96-layer 3D NAND flash memory technology with a 6Gbps SATA interface. They provide an affordable solution for mixed read/write applications such as cache in transactional applications and high-speed storage for enterprise databases.
Internal Data Rate540 MBps (read) / 380 MBps (write)
4KB Random Read82000 IOPS
4KB Random Write60000 IOPS
Average Latency175 µs
Reliability
MTBF3,000,000 hours
Non-Recoverable Errors1 per 10^17
Expansion & Connectivity
Interfaces1 x SATA 6 Gb/s
Compatible Bay2.5"
Power
Power Consumption2.5 Watt (read) ¦ 3 Watt (write)
Miscellaneous
Compliant StandardsEN 55032 Class B, RoHS, FCC CFR47 Part 15 B, UL 60950-1 Second Edition, BSMI, CNS 13438, RCM, WEEE, Directive 2002/96/EC, TUV, IEC 60950, EN 60950, VCCI 2015.04 Class B, CISPR 32 Class B, ICES-003:2016, RRL, KCC KN32 Class B, KCC KN35 Class B, Micron Green Standard, IC
Manufacturer Warranty
Service & SupportLimited warranty - 1 year
Environmental Parameters
Min Operating Temperature0 °C
Max Operating Temperature70 °C
Humidity Range Operating5 - 95% (non-condensing)
Shock Tolerance (non-operating)1500 g @ 0.5 ms
Vibration Tolerance (non-operating)3.13 g @ 5-800 Hz
