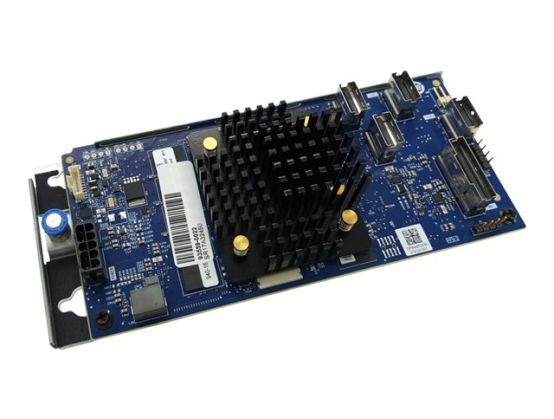

Lenovo ThinkSystem 940-16i - storage controller (RAID) - SATA / SAS 12Gb/s - PCIe 4.0 x8

Name: Lenovo ThinkSystem 940-16i - storage controller (RAID) - SATA / SAS 12Gb/s - PCIe 4.0 x8
Brand: LENOVO
SKU: 1TCOMSRV-007891
Price: 2474.15 GBP
Availability: OutOfStock

SKU

1TCOMSRV-007891

Manufacture#: 4Y37A09735

£2061.79

£2474.15 inc VAT

Checking delivery…

Product details

Storage controller (RAID)
16 Channel
SATA / SAS 12Gb/s
RAID RAID 0, 1, 5, 6, 10, 50, JBOD, 60

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

Lenovo ThinkSystem 940-16i
Storage controller (RAID)
16 Channel
SATA / SAS 12Gb/s
RAID RAID 0, 1, 5, 6, 10, 50, JBOD, 60
PCIe 4.0 x8
for ThinkSystem SR630 V2; SR645; SR650 V2; SR665; ST650 V2

Overview

The ThinkSystem RAID 940 family of PCIe 4.0 SAS RAID controllers are high-performance RAID-on-chip adapters for connectivity to drives internal to the server.

Specification

Product Description Lenovo ThinkSystem 940-16i - storage controller (RAID) - SATA / SAS 12Gb/s - PCIe 4.0 x8

Device Type Storage controller (RAID) - plug-in card

Bus Type PCIe 4.0 x8

Interface SATA / SAS 12Gb/s

Data Transfer Rate 12 Gbit/s

Buffer Size 8 GB

Supported Devices Hard drive, disk array (RAID), solid state drive

Channel Qty 16

Max Storage Devices Qty 16

RAID Level RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60

System Requirements Microsoft Windows Server 2016, Microsoft Windows Server 2019, VMware ESXi 6.7 update 3, Red Hat Enterprise Linux 7.6, SUSE Linux Enterprise Server 15 SP1, Red Hat Enterprise Linux 8.1, SUSE Linux Enterprise Server 12 SP5, VMware ESXi 7.0, SUSE Linux Enterprise Server 12 SP5 with Xen, SUSE Linux Enterprise Server 15 SP1 with Xen

Manufacturer Warranty 1-year warranty

Designed For ThinkSystem SR630 V2 7Z71; SR645 7D2X, 7D2Y; SR650 V2 7D15, 7Z73; SR665 7D2V, 7D2W; ST650 V2 7Z74, 7Z75

General

Device Type Storage controller (RAID) - plug-in card

Host Bus PCIe 4.0 x8

Storage Controller

Interface SATA / SAS 12Gb/s

Data Transfer Rate 12 Gbit/s

Buffer Size 8 GB

Supported Devices Hard drive, disk array (RAID), solid state drive

Channel Qty 16

Max Storage Devices Qty 16

RAID Level RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60

Processor Broadcom SAS3916

Expansion / Connectivity

Interfaces 2 x SAS 12Gb/s - Slim SAS (SFF-8654) (internal)

Miscellaneous

Features Online Capacity Expansion (OCE), Online RAID Level Migration (RLM), SecureBoot, CacheVault flash cache protection, S.M.A.R.T. support, Self-Encrypting Drive (SED) support, FastPath, SafeStore, consistency check, fast initialisation, Patrol Read

Compliant Standards EN55022, EN55024, ICES-003 Class B, RoHS, WEEE, FCC CFR47 Part 15 B, VCCI V-3, AS/NZS CISPR 22, CNS 13438, IEC/UL 60950

Software / System Requirements

OS Required Microsoft Windows Server 2016, Microsoft Windows Server 2019, VMware ESXi 6.7 update 3, Red Hat Enterprise Linux 7.6, SUSE Linux Enterprise Server 15 SP1, Red Hat Enterprise Linux 8.1, SUSE Linux Enterprise Server 12 SP5, VMware ESXi 7.0, SUSE Linux Enterprise Server 12 SP5 with Xen, SUSE Linux Enterprise Server 15 SP1 with Xen

Manufacturer Warranty

Service & Support Limited warranty - 1 year

Environmental Parameters

Min Operating Temperature 10 °C

Max Operating Temperature 55 °C

Humidity Range Operating 20 - 80% (non-condensing)

Compatibility Information

Designed For Lenovo ThinkSystem SR630 V2 7Z71 ¦ Lenovo ThinkSystem SR645 7D2X, 7D2Y ¦ Lenovo ThinkSystem SR650 V2 7D15, 7Z73 ¦ Lenovo ThinkSystem SR665 7D2V, 7D2W ¦ Lenovo ThinkSystem ST650 V2 7Z74, 7Z75
