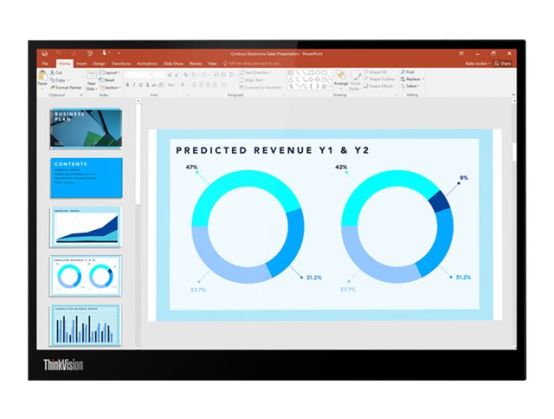

The ThinkVision M14 is an ultraslim and ultralight mobile monitor. Its 14-inch screen helps you extend your workspace comfortably no matter where work takes you. Compatible with notebooks of any screen size that come with a USB Type-C port which supports DP1.2 Alt mode and PD2.0, the ThinkVision M14 can either extend or duplicate your notebook display with one plug. The innovative USB Type-C ports on each side of the monitor along with its ambidextrous design that allows both left- and right-handed users to work easily, and ergonomic design enhance user experience. Packed with impressive portability, connectivity, and flexibility features, the ThinkVision M14 is ideal for mobile productivity.
Product DescriptionLenovo ThinkVision M14d - LED monitor - 14"
Device TypeLED-backlit LCD monitor - 14"
Energy Label QR Code URLHttps://eprel.ec.europa.eu/qr/1209632
Energy ClassClass C
FeaturesUSB 2.0/USB-C hub
Panel TypeIPS
Aspect Ratio16:10
Native Resolution2.2K 2240 x 1400 at 60 Hz
Pixel Pitch0.135 mm
Brightness300 cd/m²
Contrast Ratio1500:1 / 3000000:1 (dynamic)
Response Time6 ms (extreme), 8 ms (normal)
Colour Support16.7 million colours
Colour Gamut100% sRGB
Input Connectors2xUSB-C
Display Position AdjustmentsHeight, tilt
Screen CoatingAnti-glare
VoltageAC 100-240 V (50/60 Hz)
ColourRaven black
Dimensions (WxDxH) - with stand (highest position)31.44 cm x 10.64 cm x 22.75 cm
Weight600 g
Environmental StandardsENERGY STAR Qualified EPEAT Silver
Compliant StandardsCCC, RoHS, RoHS 2011/65/EU, TUV Rheinland Low Blue Light Certification, TUV Rheinland Flicker Free Certification, China Energy standard Tier 1, TUV Eyesafe Display Certification, TUV Rheinland Low Blue Light (Hardware Solution), Eyesafe Certification, TÜV Rheinland Low Blue Light
Manufacturer Warranty3-year warranty
Extended Specification
General
Display TypeLED-backlit LCD monitor / TFT active matrix
Energy Label QR Code URLHttps://eprel.ec.europa.eu/qr/1209632
Energy ClassClass C
Diagonal Size14"
Built-in DevicesUSB 2.0/USB-C hub
Panel TypeIPS
Aspect Ratio16:10
Native Resolution2.2K 2240 x 1400 at 60 Hz
Pixel Pitch0.135 mm
Pixel Per Inch189
Brightness300 cd/m²
Contrast Ratio1500:1 / 3000000:1 (dynamic)
Colour Support16.7 million colours
Colour Gamut100% sRGB
Response Time6 ms (extreme), 8 ms (normal)
Horizontal Viewing Angle178
Vertical Viewing Angle178
Screen CoatingAnti-glare
Backlight TechnologyWLED
Features8-bit Colour Depth, Natural Low Blue Light technology, 4.9 mm bezel (side)
ColourRaven black
Dimensions (WxDxH)31.44 cm x 10.64 cm x 22.75 cm - with stand (highest position)
Weight600 g
Connectivity
Interfaces2 x USB-C 3.2 Gen 1/DisplayPort 1.2 Alt Mode
Mechanical
Display Position AdjustmentsHeight, tilt
Tilt Angle-5/+95
Height Adjustment11 mm
VESA Mounting Interface100 x 100 mm
Miscellaneous
FeaturesSecurity lock slot (cable lock sold separately)
Cables Included1 x USB-C cable
Compliant StandardsCCC, RoHS, RoHS 2011/65/EU, TUV Rheinland Low Blue Light Certification, TUV Rheinland Flicker Free Certification, China Energy standard Tier 1, TUV Eyesafe Display Certification, TUV Rheinland Low Blue Light (Hardware Solution), Eyesafe Certification, TÜV Rheinland Low Blue Light
Security Slot TypeKensington security slot
Power
Input VoltageAC 100-240 V (50/60 Hz)
Power Consumption SDR (On mode)6.1 kWh/1000h
Power Consumption (Typical)6 Watt
Power Consumption (Max)7.5 Watt
Power Consumption Sleep0.5 Watt
Power Consumption (Off Mode)0.3 Watt
Software / System Requirements
Included SoftwareLenovo ThinkColour
OS RequiredWindows 10, Windows 11
Dimensions & Weight
Dimensions & Weight DetailsWith stand (highest position) - width: 31.44 cm - depth: 10.64 cm - height: 22.75 cm - weight: 600 g ¦ With stand (lowest position) - width: 31.44 cm - depth: 10.64 cm - height: 21.65 cm - weight: 600 g
