Adds 3 USB 3.1 Gen 1 / USB 3.0 Type A ports, an HDMI and VGA port as well as a Gigabit Ethernet port to a laptop
Supports 4K UHD 3840x2160@30Hz for HDMI displays and Full HD 1920x1080@60Hz for VGA displays
Features DisplayPort Alternate Mode
USB Power Delivery 3.0 capable up to 100W
2 year warranty

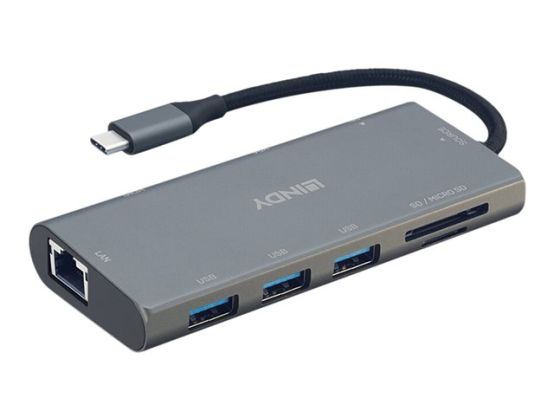

The Lindy USB 3.1 Type C Multi-Port Converter is a compact and multifunctional solution for connecting Laptops to a range of interfaces including displays, all over a single Type C cable. Featuring all the interfaces needed for a modern workstation, this Multi-Port Converter uses a single USB 3.1 Type C cable to simultaneously connect a laptop to a display and provide power, Gigabit Ethernet and USB 3.1 Gen 1 / USB 3.0 SuperSpeed ports. It also features a card reader for SD and microSD cards.
The converter enables the connection of a display to a laptop via HDMI at resolutions of 3840x2160@30Hz or via VGA at 1920x1080@60Hz using DisplayPort Alternate Mode through the USB Type C port. If a VGA and HDMI display are connected simultaneously, this converter works as a splitter with maximum resolution of 1920x1080@60Hz for each display with the same video content.
With support for USB Power Delivery up to 100W it is also able to provide power to a laptop using the Type C port. The three integrated USB 3.1 Gen 1 / USB 3.0 Type A ports provide up to 5Gbps of data transfer. Perfect for connecting Type A peripherals such as a hard drive, printer or webcam.
Product DescriptionLINDY USB 3.1 Type C Multi-Port Converter - docking station - USB-C - VGA, HDMI - 1GbE
Product TypeDocking station
Docking InterfaceUSB-C
Video InterfacesVGA, HDMI
Dimensions (WxDxH)18 cm x 1.7 cm x 4.9 cm
Weight90 g
ColourGrey
NetworkingGigabit Ethernet
Manufacturer Warranty2-year warranty
Extended Specification
General
Product TypeDocking station
Width18 cm
Depth1.7 cm
Height4.9 cm
Weight90 g
Enclosure ColourGrey
Video
Max Resolution Details3840 x 2160 - 30 Hz (HDMI only) ¦ 1920 x 1080 - 60 Hz (VGA only) ¦ 1920 x 1080 - 60 Hz (HDMI and VGA simultaneously)
Networking
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
Expansion / Connectivity
Expansion Slots2 (total) / 2 (free) x SD/microSD Memory Card
Interfaces3 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 1 x USB-C / Thunderbolt 3 with Power Delivery - 24 pin USB-C ¦ 1 x display / video - HDMI - 19 pin HDMI Type A ¦ 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) ¦ 1 x network - Ethernet 1000 - RJ-45
Miscellaneous
Cables Included1 x USB cable - external
FeaturesHDCP Compliant, bus powered, DisplayPort Alt Mode, 100W power delivery, poly bag packaging, 20 V rated operating voltage, GL3510 chipset, EP9632G chipset, RTL8153B chipset
Compliant StandardsFCC, RoHS, REACH, CP65, HDCP 2.2, USB Power Delivery 3.0
