GIGABYTE

MB AMD AM4 A520 A520 AORUS ELIT DDR4 ATX

Name: MB AMD AM4 A520 A520 AORUS ELIT DDR4 ATX
Brand: GIGABYTE
SKU: 1TCPTMOT-004150
Price: 78.35 GBP
Availability: InStock

SKU

1TCPTMOT-004150

Manufacture#: A520 AORUS ELITE

Be the first to review this product

£65.29

£78.35 inc VAT

Order by 15:00 and receive your order on Friday 18 Apr

Product details

1.0
motherboard
ATX
Socket AM4

View full product specification

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

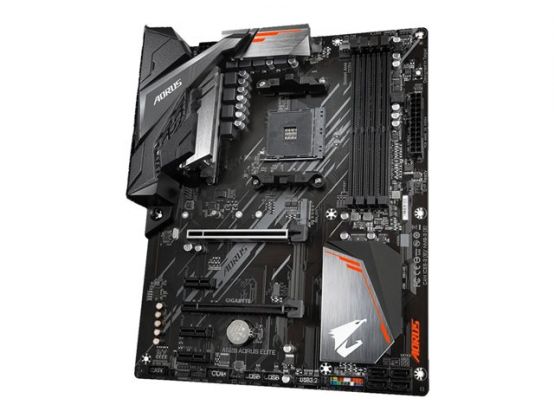

Gigabyte A520 AORUS ELITE
1.0
motherboard
ATX
Socket AM4
AMD A520 Chipset
USB 3.2 Gen 1, USB 3.2 Gen 2
Gigabit LAN
onboard graphics (CPU required)
HD Audio (8-channel)

Overview

Gigabyte A520 AORUS ELITE - 1.0 - motherboard - ATX - Socket AM4 - AMD A520

Specification

Product Description Gigabyte A520 AORUS ELITE - 1.0 - motherboard - ATX - Socket AM4 - AMD A520

Product Type Motherboard - ATX

Chipset Type AMD A520

Processor Socket 1 x Socket AM4

Compatible Processors Ryzen (supports 3rd Generation Ryzen / 3rd Generation Ryzen with Radeon Graphics)

Max RAM Size 128 GB

RAM Supported 4 DIMM slots - DDR4, non-ECC, ECC, unbuffered

Storage Ports 4 x SATA-600 (RAID), 1 x M.2

USB / FireWire Ports 1 x USB 3.2 Gen 2 + 3 x USB 3.2 Gen 1 + 4 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio HD Audio (8-channel)

LAN Gigabit Ethernet

General

Product Type Motherboard - ATX

Chipset Type AMD A520

Processor Socket Socket AM4

Max Processors Qty 1

Compatible Processors Ryzen (supports 3rd Generation Ryzen / 3rd Generation Ryzen with Radeon Graphics)

Supported RAM

Max Size 128 GB

Technology DDR4

Bus Clock 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3333 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz, 4733 MHz (O.C.)

Supported RAM Integrity Check Non-ECC, ECC

Registered or Buffered Unbuffered

Features Dual channel memory architecture

Audio

Type HD Audio (8-channel)

Audio Codec Realtek ALC1200

Compliant Standards High Definition Audio

LAN

Network Interfaces Gigabit Ethernet

Expansion / Connectivity

Expansion Slots 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x16 (x2 mode) ¦ 3 x PCIe 3.0 x1

Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2

Interfaces 1 x LAN (Gigabit Ethernet) ¦ 1 x PS/2 keyboard / mouse ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x DVI-D ¦ 1 x HDMI ¦ 3 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x USB 3.2 Gen 2 ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x TOSLINK

Internal Interfaces 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header

Power Connectors 24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type AMI

BIOS Features WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support

Hardware Monitoring CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage

Hardware Features Q-Flash, On/Off Charge, Ultra Durable, GIGABYTE AMP-UP Audio, Q-Flash Plus, Game Boost, Audio Noise Guard, GIGABYTE Double Locking Bracket, Anti-Sulfur Design, GIGABYTE Smart Fan 5, pre-mounted I/O shield, Solid Pin Power Connectors, RGB FUSION 2.0, 5+3 Phase Power Design

Miscellaneous

Software Included Norton Internet Security, @BIOS, EasyTune, Xpress Install, GIGABYTE App Center, GIGABYTE Fast Boot, GIGABYTE Smart Backup, Realtek Gaming LAN Bandwidth Control

Width 30.5 cm

Depth 24.4 cm
