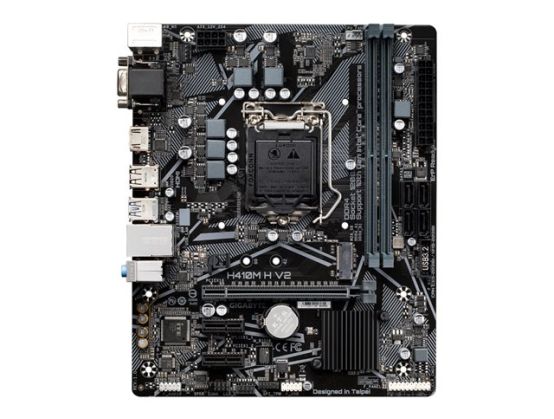

Gigabyte H410M H V2 - 1.0 - motherboard - micro ATX - LGA1200 Socket - H410
Checking delivery…
Product details
1.0
motherboard
micro ATX
LGA1200 Socket
Payment options available at checkout
Main features
Gigabyte H410M H V2
1.0
motherboard
micro ATX
LGA1200 Socket
H410 Chipset
USB 3.2 Gen 1
Gigabit LAN
onboard graphics (CPU required)
HD Audio (8-channel)
Overview
Gigabyte H410M H V2 - 1.0 - motherboard - micro ATX - LGA1200 Socket - H410
Product Description
Gigabyte H410M H V2 - 1.0 - motherboard - micro ATX - LGA1200 Socket - H410
Product Type
Motherboard - micro ATX
Chipset Type
Intel H410
Processor Socket
1 x LGA1200 Socket
Compatible Processors
Pentium, Celeron, Core i5, Core i3, Core i7, Core i9 (supports 10th Generation Intel Core / Pentium / Celeron)
Max RAM Size
64 GB
RAM Supported
2 DIMM slots non-ECC, ECC (operate in non-ECC mode), unbuffered
Storage Ports
4 x SATA-600 (RAID), 1 x M.2
USB / FireWire Ports
2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (2 x USB 3.2 Gen 1 + 2 x USB 2.0 via headers)
Max Allocated RAM Size
512 MB
Audio
HD Audio (8-channel)
LAN
Gigabit Ethernet
General
Product Type
Motherboard - micro ATX
Chipset Type
Intel H410
Processor Socket
LGA1200 Socket
Max Processors Qty
1
Compatible Processors
Pentium, Celeron, Core i5, Core i3, Core i7, Core i9 (supports 10th Generation Intel Core / Pentium / Celeron)
Supported RAM
Max Size
64 GB
Bus Clock
2400 MHz, 2133 MHz, 2666 MHz, 2933 MHz
Supported RAM Integrity Check
Non-ECC, ECC (operate in non-ECC mode)
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode
Graphics
Max Allocated RAM Size
512 MB
Audio
Type
HD Audio (8-channel)
Compliant Standards
High Definition Audio
LAN
Network Interfaces
Gigabit Ethernet
Expansion / Connectivity
Expansion Slots
1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 3.0 x1
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe -connectors: 1 x M.2
Interfaces
1 x VGA ¦ 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x PS/2 keyboard / mouse ¦ 2 x USB 3.2 Gen 1 ¦ 1 x audio line-in - mini-jack
Internal Interfaces
2 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Type
AMI
BIOS Features
WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support
Hardware Monitoring
CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, fan fail warning
Hardware Features
Q-Flash, On/Off Charge, Ultra Durable, GIGABYTE Ambient LED, Anti-Surge IC, Game Boost, Audio Noise Guard, GIGABYTE Double Locking Bracket, Anti-Sulfur Design, GIGABYTE Smart Fan 5, Glass Fabric PCB
Miscellaneous
Software Included
Norton Internet Security, @BIOS, EasyTune, Xpress Install, GIGABYTE App Center, GIGABYTE Fast Boot, GIGABYTE Smart Backup, cFosSpeed
Compliant Standards
Plug and Play, HDCP 2.3
Width
22.6 cm
Depth
18.5 cm
