MSI

MB INT LGA1700 B760M-A WIFI D5 M-ATX

Name: MB INT LGA1700 B760M-A WIFI D5 M-ATX
Brand: MSI
SKU: 1TCPTMOT-004674
Price: 137.99 GBP
Availability: OutOfStock

SKU

1TCPTMOT-004674

Manufacture#: PRO B760M-A WIFI

£114.99

£137.99 inc VAT

Checking delivery…

Product details

Motherboard
micro ATX
LGA1700 Socket
B760 Chipset

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

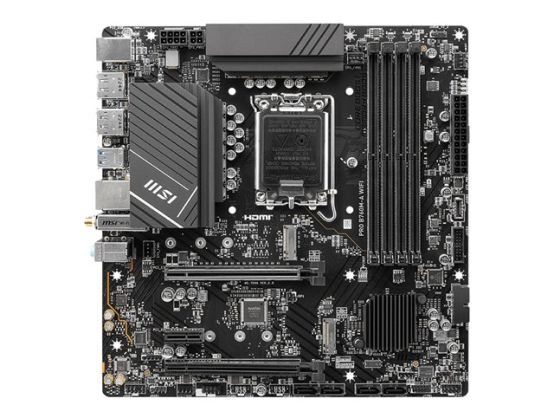

MSI PRO B760M-A WIFI
Motherboard
micro ATX
LGA1700 Socket
B760 Chipset
USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 1
2.5 Gigabit LAN, Wi-Fi 6E, Bluetooth
onboard graphics (CPU required)
HD Audio (8-channel)

Overview

PRO B760M-A WIFI is designed with tons of flexible tools and convenient Wi-Fi solution with DDR5 memory version

Specification

Product Description MSI PRO B760M-A WIFI - motherboard - micro ATX - LGA1700 Socket - B760

Product Type Motherboard - micro ATX

Chipset Type Intel B760

Processor Socket 1 x LGA1700 Socket

Compatible Processors (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)

Max RAM Size 192 GB

RAM Supported 4 DIMM slots - DDR5, non-ECC, unbuffered

Storage Ports 4 x SATA-600 (RAID), 2 x M.2

USB / FireWire Ports 2 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio HD Audio (8-channel)

LAN 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3

General

Product Type Motherboard - micro ATX

Chipset Type Intel B760

Processor Socket LGA1700 Socket

Max Processors Qty 1

Compatible Processors (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)

Supported RAM

Max Size 192 GB

Technology DDR5

Bus Clock 6800 MHz (O.C.), 6600 MHz (O.C.), 6400 MHz (O.C.), 6200 MHz (O.C.), 6000 MHz (O.C.), 5800 MHz (O.C.), 5600 MHz, 5400 MHz, 5200 MHz, 5000 MHz, 4800 MHz

Supported RAM Integrity Check Non-ECC

Registered or Buffered Unbuffered

Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0

Audio

Type HD Audio (8-channel)

Audio Codec Realtek ALC897

Compliant Standards High Definition Audio

LAN

Network Controller Realtek RTL8125BG

Network Interfaces 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3

Expansion / Connectivity

Expansion Slots 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key B slot)

Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2

Interfaces 2 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 2 x USB 3.2 Gen 2 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 2 x aerial ¦ 1 x PS/2 keyboard / mouse ¦ 1 x audio line-out - mini-jack ¦ 1 x headphones output - mini-jack ¦ 1 x microphone - mini-jack ¦ 2 x HDMI ¦ 2 x DisplayPort

Internal Interfaces 4 x USB 2.0 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x SPI - header

Power Connectors 24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector

Features

BIOS Features MSI ClickBIOS 5, M-Flash

Hardware Features Water Pump Header, M.2 Shield FROZR, Debug LED, Extended Heatsink Design, 12+1+1 Phase Power Design, reinforced PCIe slots, MSI Core Boost, 2oz Copper PCB, DIY Friendly Design, 6 Layer PCB, MSI Audio Boost, MSI Mystic Light, MSI Steel Armor

Miscellaneous

Included Accessories 2 x M.2 screws, Wi-Fi aerial, IO shield

Cables Included 1 x Serial ATA cable

Software Included MSI Center, AIDA64 Extreme (60 days trial)

Compliant Standards DisplayPort 1.4, FIPS, FISMA

Width 24.384 cm

Depth 24.384 cm
