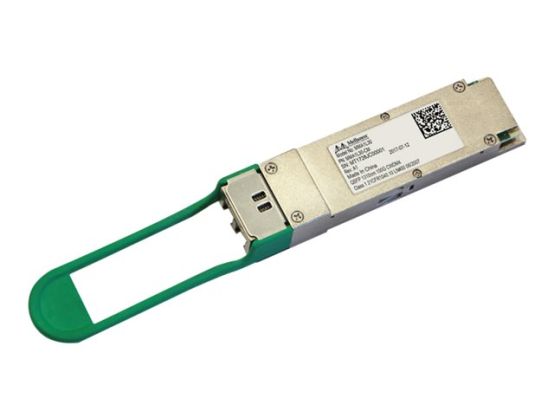

NVIDIA - QSFP28 transceiver module - 100 GigE optical - 100GBase-CWDM4 - LC / LC - up to 2 km - 1310 nm
Manufacture#: 980-9I17Q-00CM00
Checking delivery…
Product details
QSFP28 transceiver module
100 Gigabit Ethernet
100GBase-CWDM4
LC single-mode
Payment options available at checkout
Main features
Mellanox MMA1L30-CM
QSFP28 transceiver module
100 Gigabit Ethernet
100GBase-CWDM4
LC single-mode
up to 2 km
1310 nm
Overview
Mellanox MMA1L30-CM transceiver is a single mode, 4-channel (CWDM4), QSFP28 optical transceiver designed for use in 100 Gigabit Ethernet (GbE) links on up to 2 km of single mode fiber. The module converts 4 input channels of 25 Gb/s electrical data to 4 channels of CWDM optical signals and then multiplexes them into a single fiber, using a nominal wavelength of 1310 nm, for 100 Gb/s optical transmission.
Product Description
Mellanox MMA1L30-CM - QSFP28 transceiver module - 100 Gigabit Ethernet
Device Type
QSFP28 transceiver module - LC single-mode
Form Factor
Plug-in module
Cabling Type
100GBase-CWDM4
Data Transfer Rate
100 Gbps
Optical Wave Length
1310 nm
Data Link Protocol
100 Gigabit Ethernet
Max Transfer Distance
2 km
Manufacturer Warranty
1-year warranty
General
Device Type
QSFP28 transceiver module
Form Factor
Plug-in module
Networking
Connectivity Technology
Wired
Cabling Type
100GBase-CWDM4
Data Link Protocol
100 Gigabit Ethernet
Data Transfer Rate
100 Gbps
Optical Wave Length
1310 nm
Max Transfer Distance
2 km
Compliant Standards
IEEE 802.3bm
Expansion / Connectivity
Interfaces
1 x Ethernet 100GBase-CWDM4 - LC single-mode x 2
Miscellaneous
Compliant Standards
RoHS, Laser Class 1, MSA SFF-8665, MSA SFF-8636
Manufacturer Warranty
Service & Support
Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
70 °C
