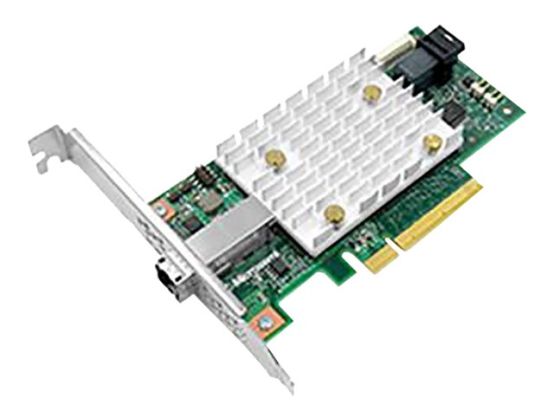

MicroSemi SmartHBA2100-4i4e - storage controller (RAID) - SATA 6Gb/s / SAS 12Gb/s - PCIe 3.0 x8
Checking delivery…
Product details
Storage controller (RAID)
8 Channel
SATA 6Gb/s / SAS 12Gb/s
low profile
Payment options available at checkout
Main features
MicroSemi SmartHBA2100-4i4e
Storage controller (RAID)
8 Channel
SATA 6Gb/s / SAS 12Gb/s
low profile
RAID 0, 1, 5, 10
PCIe 3.0 x8
for Workstation Z4 G4, Z6 G4, Z8 G4
Overview
Get enterprise-class reliability with four internal and four external 12Gb/s SAS +SATA ports and additional reliability protection with RAID 0, 1, and 10 for your HP Z4, Z6, and Z8 G4 Series Workstation with the MicroSemi 2100-4i4e SAS RAID Controller and SAS HDDs (sold separately).
Product Description
MicroSemi SmartHBA2100-4i4e - storage controller (RAID) - SATA 6Gb/s / SAS 12Gb/s - PCIe 3.0 x8
Device Type
Storage controller (RAID) - plug-in card - low profile
Bus Type
PCIe 3.0 x8
Interface
SATA 6Gb/s / SAS 12Gb/s
Data Transfer Rate
12 Gbit/s
Supported Devices
Hard drive, tape drive, disk array (RAID), solid state drive
Channel Qty
8
Max Storage Devices Qty
256
RAID Level
RAID 0, RAID 1, RAID 5, RAID 10
System Requirements
SunSoft Solaris, FreeBSD, Red Hat Linux, SuSe Linux, Microsoft Windows, Debian Linux, CentOS, Ubuntu, VMware ESXi, Citrix XenServer
Dimensions (WxDxH)
16.7 cm x 6.4 cm
Manufacturer Warranty
3-year warranty
Designed For
Workstation Z4 G4, Z6 G4, Z8 G4
General
Device Type
Storage controller (RAID) - plug-in card - low profile
Host Bus
PCIe 3.0 x8
Storage Controller
Interface
SATA 6Gb/s / SAS 12Gb/s
Data Transfer Rate
12 Gbit/s
Supported Devices
Hard drive, tape drive, disk array (RAID), solid state drive
Channel Qty
8
Max Storage Devices Qty
256
RAID Level
RAID 0, RAID 1, RAID 5, RAID 10
Expansion / Connectivity
Interfaces
1 x SATA 6Gb/s / SAS 12Gb/s - 4 x Mini SAS HD (SFF-8643) (internal) ¦ 1 x SATA 6Gb/s / SAS 12Gb/s - 36 pin 4x Mini SAS HD (SFF-8644) (external)
Miscellaneous
Included Accessories
Low-profile bracket
Features
Native Command Queuing (NCQ), SCSI Enclosure Services 2 (SES2), S.M.A.R.T. support, SCSI Enclosure Services 3 (SES3)
MTBF
1,400,000 hours
Compliant Standards
UL, VCCI, C-Tick, FCC, RoHS, KCC
Software / System Requirements
OS Required
SunSoft Solaris, FreeBSD, Red Hat Linux, SuSe Linux, Microsoft Windows, Debian Linux, CentOS, Ubuntu, VMware ESXi, Citrix XenServer
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Dimensions & Weight
Depth
16.7 cm
Height
6.4 cm
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
55 °C
Compatibility Information
Designed For
HP Workstation Z4 G4, Z6 G4, Z8 G4
