MB INT 1151 H310M PRO-M2 Plus D4 M-ATX
Manufacture#: H310M PRO-M2 PLUS
Checking delivery…
Product details
Motherboard
micro ATX
LGA1151 Socket
H310 Chipset
Payment options available at checkout
Main features

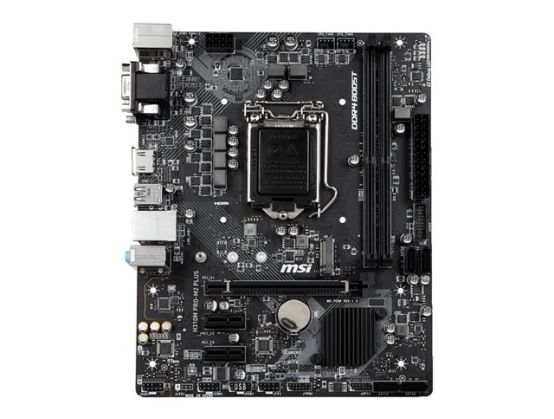

MSI H310M PRO-M2 PLUS
Motherboard
micro ATX
LGA1151 Socket
H310 Chipset
USB 3.1 Gen 1
Gigabit LAN
onboard graphics (CPU required)
HD Audio (8-channel)
Overview
The H310M PRO-M2 PLUS motherboard is designed to fully utilize the Intel Coffee Lake 6 core processors, ready to deliver world-class performance when gaming.
Product Description
MSI H310M PRO-M2 PLUS - motherboard - micro ATX - LGA1151 Socket - H310
Product Type
Motherboard - micro ATX
Chipset Type
Intel H310
Processor Socket
1 x LGA1151 Socket
Compatible Processors
Celeron, Core i5, Core i3, Core i7, Core i9, Pentium Gold (supports 9th and 8th Generation Intel Core / Pentium Gold / Celeron)
Max RAM Size
32 GB
RAM Supported
2 DIMM slots - DDR4, non-ECC, unbuffered
Storage Ports
4 x SATA-600, 1 x M.2
USB / FireWire Ports
2 x USB 3.1 Gen 1 + 4 x USB 2.0 + (2 x USB 3.1 Gen 1 + 2 x USB 2.0 via headers)
Audio
HD Audio (8-channel)
LAN
Gigabit Ethernet
General
Product Type
Motherboard - micro ATX
Chipset Type
Intel H310
Processor Socket
LGA1151 Socket
Max Processors Qty
1
Compatible Processors
Celeron, Core i5, Core i3, Core i7, Core i9, Pentium Gold (supports 9th and 8th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Max Size
32 GB
Technology
DDR4
Bus Clock
2400 MHz, 2133 MHz, 2666 MHz
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Audio
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC887
Compliant Standards
High Definition Audio
LAN
Network Controller
Intel I219V
Network Interfaces
Gigabit Ethernet
Expansion / Connectivity
Expansion Slots
1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 2.0 x1
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA ¦ SATA-600 / PCIe -connectors: 1 x M.2
Interfaces
1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x DVI-D ¦ 2 x USB 3.1 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x VGA
Internal Interfaces
2 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x serial - header ¦ 1 x audio - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Features
MSI ClickBIOS 5
Hardware Features
MSI Audio Boost, Debug LED, LAN Protect, MSI Core Boost, MSI PCIe Steel Slot
Miscellaneous
Included Accessories
I/O back plate
Cables Included
2 x Serial ATA cable
Software Included
Drivers & Utilities, MSI Command Center, RAMdisk, MSI Live Update 6, MSI CPU-Z, MSI X-BOOST
Width
23 cm
Depth
18.5 cm
