The MSI MAG A850GL PCIE5 WHITE power supply is designed to meet the needs of demanding PC builds and servers. With its 80 PLUS Gold certification, it delivers up to 90% efficiency, reducing energy consumption and enhancing system performance. The power supply features a 120 mm cooling fan with fluid dynamic bearing, ensuring efficient cooling and optimal operating temperatures. Its fully modular design allows for a clean and organized build, simplifying cable management and installation. The MAG A850GL PCIE5 WHITE also offers comprehensive protection against overcurrent, overheat, overpower, overvoltage, short-circuit, and undervoltage, providing a secure and reliable power solution. With support for a wide range of voltages and connectors, including 24-pin ATX, 8-pin EPS12V, and 12+4-pin PCI Express 5.0, it ensures compatibility with a variety of PC and server configurations, making it a flexible and future-proof choice for your power supply needs.

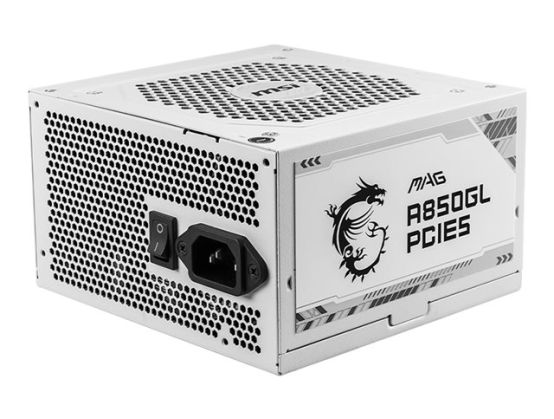

Product DescriptionMSI MAG A850GL PCIE5 WHITE - power supply - 850 Watt
Device TypePower supply - active Power Factor Correction (PFC) - internal
Specification ComplianceATX12V 3.0/ EPS12V
80 PLUS Certification80 PLUS Gold
Weight2.87 kg
Input VoltageAC 100-240 V
Power Capacity850 Watt
Output Current+3.3V - 20 A ¦ +5V - 20 A ¦ -12V - 0.3 A ¦ +12V - 70.5 A ¦ +5VSB - 2.5 A
Output connectors1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 12+4 pin PCI Express 5.0 power 600 W ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 8 x 15 pin Serial ATA power ¦ 5 x 4 PIN internal power
Modular Cable ManagementYes
Cooling System120 mm fan
ColourWhite
Dimensions (WxDxH)15 cm x 14 cm x 8.6 cm
Manufacturer Warranty10 years warranty
Extended Specification
General
Device TypePower supply - active Power Factor Correction (PFC) - internal
Specification ComplianceATX12V 3.0/ EPS12V
PSU Form FactorATX
ColourWhite
Power Device
Input VoltageAC 100-240 V
Frequency Required47 - 63 Hz
Power Output Connectors Details1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 12+4 pin PCI Express 5.0 power 600 W ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 8 x 15 pin Serial ATA power ¦ 5 x 4 PIN internal power
Power Capacity850 Watt
Output Current+3.3V - 20 A ¦ +5V - 20 A ¦ -12V - 0.3 A ¦ +12V - 70.5 A ¦ +5VSB - 2.5 A
Efficiency90%
Modular Cable ManagementYes
80 PLUS Certification80 PLUS Gold
Miscellaneous
Cables IncludedATX power cable 60 cm ¦ 16-pin 12VHPWR power cable 60 cm ¦ 2 x 2x 8 pin PCI Express power with detachable 2 pin section modular cable 60 cm ¦ 2 x power 8 pin +12V with detachable 4 pin section modular cable 70 cm ¦ 2 x power 15 pin SATA cable ¦ 4 pin internal power cable
Cooling System120 mm fan
FeaturesFluid dynamic bearing cooling fan, fully modular, overpower protection, over voltage protection, short-circuit protection, undervoltage protection, over current protection, overheat protection, LLC Full Bridge Topology, DC-DC technology, single 12V rail
