MSI

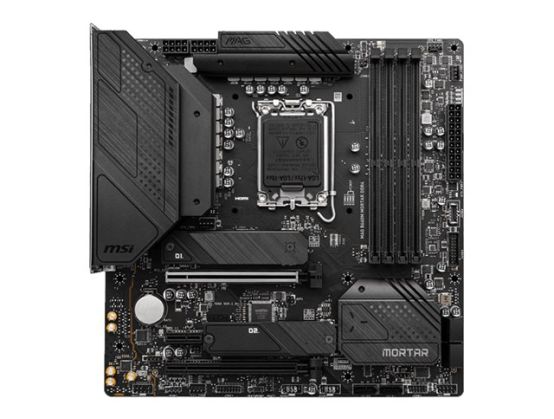

MB INT 1700 B660M Mortar DDR4 M-ATX

Name: MB INT 1700 B660M Mortar DDR4 M-ATX
Brand: MSI
SKU: 1TCPTMOT-004213
Price: 174.16 GBP
Availability: OutOfStock

SKU

1TCPTMOT-004213

Manufacture#: MAG B660M MORTAR DDR4

£145.13

£174.16 inc VAT

Checking delivery…

Product details

Motherboard
micro ATX
LGA1700 Socket
B660 Chipset

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

MSI MAG B660M MORTAR DDR4
Motherboard
micro ATX
LGA1700 Socket
B660 Chipset
USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2
2.5 Gigabit LAN
onboard graphics (CPU required)
HD Audio (8-channel)

Overview

MSI MAG B660M MORTAR DDR4 - motherboard - micro ATX - LGA1700 Socket - B660

Specification

Product Description MSI MAG B660M MORTAR DDR4 - motherboard - micro ATX - LGA1700 Socket - B660

Product Type Motherboard - micro ATX

Chipset Type Intel B660

Processor Socket 1 x LGA1700 Socket

Compatible Processors (supports 12th Generation Intel Core / Pentium / Celeron)

Max RAM Size 128 GB

RAM Supported 4 DIMM slots - DDR4, non-ECC, unbuffered

Storage Ports 6 x SATA-600 (RAID), 2 x M.2

USB / FireWire Ports 1 x USB-C Gen 2x2 + 3 x USB 3.2 Gen 2 + 4 x USB 2.0 + (1 x USB-C Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio HD Audio (8-channel)

LAN 2.5 Gigabit Ethernet

General

Product Type Motherboard - micro ATX

Chipset Type Intel B660

Processor Socket LGA1700 Socket

Max Processors Qty 1

Compatible Processors (supports 12th Generation Intel Core / Pentium / Celeron)

Supported RAM

Max Size 128 GB

Technology DDR4

Bus Clock 2133 MHz, 2666 MHz, 3600 MHz (O.C.), 4000 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz

Supported RAM Integrity Check Non-ECC

Registered or Buffered Unbuffered

Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)

Audio

Type HD Audio (8-channel)

Audio Codec Realtek ALC1200

Compliant Standards High Definition Audio

LAN

Network Controller Realtek RTL8125BG

Network Interfaces 2.5 Gigabit Ethernet

Expansion / Connectivity

Expansion Slots 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x1

Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ ASMedia ASM1061: SATA-600 -connectors: 2 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 ¦ PCIe 4.0 -connectors: 1 x M.2

Interfaces 1 x HDMI ¦ 1 x DisplayPort ¦ 3 x USB 3.2 Gen 2 ¦ 1 x USB-C Gen2x2 ¦ 4 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x TOSLINK ¦ 1 x LAN (2.5Gigabit Ethernet)

Internal Interfaces 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen2 - header ¦ 1 x audio - header

Power Connectors 24-pin main power connector, 2 x 8-pin ATX12V connectors

Features

BIOS Features MSI ClickBIOS 5

Hardware Features Digital PWM, AMD CrossFireX technology support, MSI Audio Boost, anti-pop function, Debug LED, MSI Mystic Light, MSI Steel Armor, Intel Optane Memory Ready, M.2 Shield FROZR, pre-mounted I/O shield, MSI Core Boost

Miscellaneous

Included Accessories Case badge, MAG stickers, 2 x M.2 clips

Cables Included 2 x Serial ATA cable

Compliant Standards DisplayPort 1.4

Width 24.4 cm

Depth 24.4 cm
