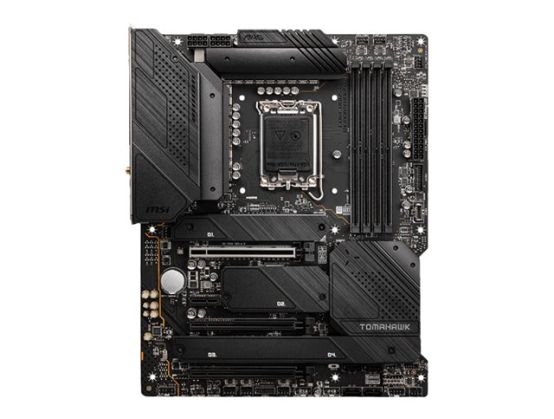

MSI MAG Z690 TOMAHAWK WIFI - motherboard - ATX - LGA1700 Socket - Z690

Name: MSI MAG Z690 TOMAHAWK WIFI - motherboard - ATX - LGA1700 Socket - Z690
Brand: MSI
SKU: 1TCPTMOT-004222
Price: 275.65 GBP
Availability: OutOfStock

SKU

1TCPTMOT-004222

Manufacture#: MAG Z690 TOMAHAWK WIFI

£229.71

£275.65 inc VAT

Checking delivery…

Product details

Motherboard
ATX
LGA1700 Socket
Z690 Chipset

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

MSI MAG Z690 TOMAHAWK WIFI
Motherboard
ATX
LGA1700 Socket
Z690 Chipset
USB-C Gen2, USB 3.2 Gen 1, USB-C Gen 2x2, USB 3.2 Gen 2
2.5 Gigabit LAN, Wi-Fi 6, Bluetooth
onboard graphics (CPU required)
HD Audio (8-channel)

Overview

MSI MAG Z690 TOMAHAWK WIFI - motherboard - ATX - LGA1700 Socket - Z690

Quadruple M.2 Connectors
M.2 Shield FROZR
Lightning Gen 5
Latest DDR5 Memory
Wi-Fi 6E
2.5G Network Solution
Lightning USB 20G
Memory Boost
Audio Boost 5

Quadruple M.2 Connectors Onboard quadruple M.2 connectors for the maximum storage performance. M.2 Shield FROZR M.2 thermal accessory. Keeps M.2 SSDs safe while preventing throttling, making them run faster. Lightning Gen 5 The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed. Latest DDR5 Memory A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology. Wi-Fi 6E The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps. 2.5G Network Solution Featuring premium 2.5G LAN with LAN manager to deliver better network experience. Lightning USB 20G Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1. Memory Boost Advanced technology to deliver pure data signals for the best performance, stability and compatibility. Audio Boost 5 Isolated audio with a high quality audio processor & amp for the most immersive gaming experience.

Specification

Product Description MSI MAG Z690 TOMAHAWK WIFI - motherboard - ATX - LGA1700 Socket - Z690

Product Type Motherboard - ATX

Chipset Type Intel Z690

Processor Socket 1 x LGA1700 Socket

Compatible Processors (supports 12th Generation Intel Core / Pentium Gold / Celeron)

Max RAM Size 128 GB

RAM Supported 4 DIMM slots - DDR5, non-ECC, unbuffered

Storage Ports 6 x SATA-600 (RAID), 4 x M.2

USB / FireWire Ports 1 x USB-C Gen 2x2 + 3 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio HD Audio (8-channel)

LAN 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2

General

Product Type Motherboard - ATX

Chipset Type Intel Z690

Processor Socket LGA1700 Socket

Max Processors Qty 1

Compatible Processors (supports 12th Generation Intel Core / Pentium Gold / Celeron)

Supported RAM

Max Size 128 GB

Technology DDR5

Bus Clock 4800 MHz, 5000 MHz (O.C.), 5066 MHz (O.C.), 5200 MHz (O.C.), 5333 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 6133 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.)

Supported RAM Integrity Check Non-ECC

Registered or Buffered Unbuffered

Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0

Audio

Type HD Audio (8-channel)

Audio Codec Realtek ALC4080

Compliant Standards High Definition Audio

LAN

Network Controller Intel I225-V

Network Interfaces 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2

Expansion / Connectivity

Expansion Slots 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x1 ¦ 1 x PCIe 3.0 x16 (x1 mode)

Storage Interfaces SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5

RAID Features Intel Smart Response Technology

Interfaces 1 x HDMI ¦ 1 x DisplayPort ¦ 3 x USB 3.2 Gen 2 ¦ 2 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x USB-C Gen2x2 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x TOSLINK ¦ 2 x USB 3.2 Gen 1

Internal Interfaces 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen2 - header ¦ 1 x audio - header

Power Connectors 24-pin main power connector, 2 x 8-pin ATX12V connectors

Features

BIOS Features MSI ClickBIOS 5

Hardware Features AMD CrossFireX technology support, Intel Optane Memory Ready, MSI Audio Boost 5, MSI Core Boost, 6 Layer PCB, 2oz Copper PCB, M.2 Shield FROZR, 16+1+1 Phase Power Design, MSI Steel Armor, Debug LED, anti-pop function, MSI Mystic Light, Game Boost, pre-mounted I/O shield, Double ESD Protection

Miscellaneous

Included Accessories Wi-Fi aerial, USB drive, case badge, MAG stickers, M.2 clip

Cables Included 2 x Serial ATA cable

Width 30.5 cm

Depth 24.4 cm
