USB-C Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2
2.5 Gigabit LAN, Wi-Fi 6, Bluetooth
onboard graphics (CPU required)
HD Audio (8-channel)
Overview

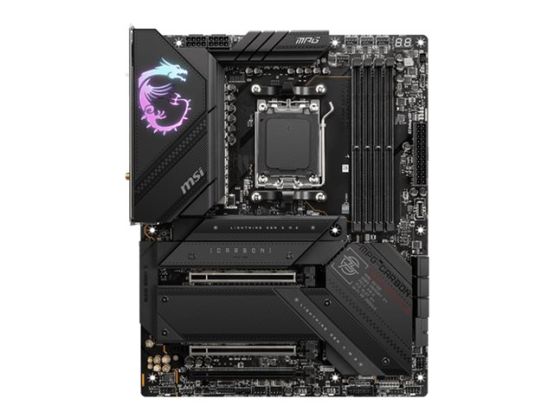

MPG X670E CARBON WIFI employs carbon black color scheme and RGB lighting to show off different personality and identity. Besides being stylish, it is also powerful.
Premium thermal design
DDR5 memory
Lightning Gen 5
MSI Core Boost
MSI Memory Boost
Screwless M.2 Shield FROZR
Wi-Fi 6E
2.5G network solution
Lightning USB 20G
MSI Audio Boost 5
DDR5 memoryA huge step of DDR performance enhancement with the DDR5 memory and MSI Memory Boost technology.Lightning Gen 5The PCIe 5.0 solution with up to 128 GB/s bandwidth for maximum transfer speed.MSI Core BoostWith premium layout and fully digital power design to support more cores and provide better performance.MSI Memory BoostAdvanced technology delivers pure data signals for an excellent performance, stability and compatibility.Screwless M.2 Shield FROZRIts design provides an easy way of M.2 installation. Install or uninstall your M.2 and Shield FROZR without tools and screws.Wi-Fi 6EThis wireless solution supports 6 GHz spectrum.2.5G network solutionFeaturing premium 2.5G LAN to deliver better network experience.Lightning USB 20GBuilt-in USB 3.2 Gen 2 x 2 port, offers 20 Gbps transmission speed, 4x faster than USB 3.2 Gen 1.MSI Audio Boost 5Isolated audio with a high-quality audio processor for an immersive gaming experience.
USB / FireWire Ports1 x USB-C 3.2 Gen 2x2 + 1 x USB-C 3.2 Gen 2 + 6 x USB 3.2 Gen 2 + 2 x USB 2.0 + (1 x USB-C 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
AudioHD Audio (8-channel)
LAN2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Network Interfaces2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Expansion / Connectivity
Expansion Slots1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 5.0 x16 (x8 mode) ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 3 x M.2 socket (2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2260/2280/22110 M.2 Key M slot) ¦ 1 x M.2 socket (Key E)
Storage InterfacesSATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10
Interfaces1 x DisplayPort ¦ 1 x HDMI ¦ 1 x USB-C 3.2 Gen2x2 ¦ 1 x USB 3.2 Gen 2 ¦ 6 x USB 3.2 Gen 2 ¦ 2 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 2 x aerial ¦ 1 x SPDIF out
Internal Interfaces4 x USB 2.0 - header ¦ 1 x USB-C 3.2 Gen 2 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x audio - header
Power Connectors24-pin main power connector, 2 x 8-pin ATX12V connectors
