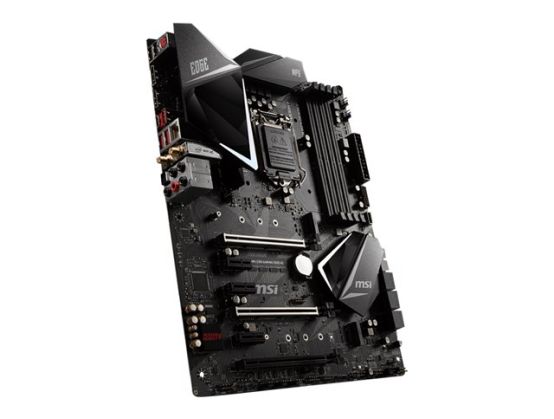

Full of sharp and salient lines reflecting gorgeous colors design, perfect balance between appearance and performance with extended heatsink design, Core boost, Twin Turbo M.2, Front USB 3.1 Gen2 connector and Mystic Light.
USB / FireWire Ports1 x USB-C Gen 2 + 1 x USB 3.1 Gen 2 + 2 x USB 3.1 Gen 1 + 2 x USB 2.0 + (1 x USB-C Gen 2 + 4 x USB 3.1 Gen 1 + 4 x USB 2.0 via headers)
Expansion Slots1 x CPU ¦ 4 x DIMM 288-pin ¦ 3 x PCIe 3.0 x16 (x16/x0/x4, x8/x8/x4 modes) ¦ 3 x PCIe 3.0 x1
Storage InterfacesSATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 2 x M.2 - RAID 0 / RAID 1
Interfaces1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x USB 3.1 Gen 2 ¦ 2 x USB 2.0 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x DisplayPort ¦ 1 x USB-C Gen2 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x TOSLINK ¦ 2 x USB 3.1 Gen 1
Internal Interfaces4 x USB 2.0 - header ¦ 4 x USB 3.1 Gen 1 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x USB-C Gen2 - header
Power Connectors4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
