USB-C Gen1, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2
2.5 Gigabit LAN, Wi-Fi 6, Bluetooth
onboard graphics (CPU required)
HD Audio (8-channel)
Overview

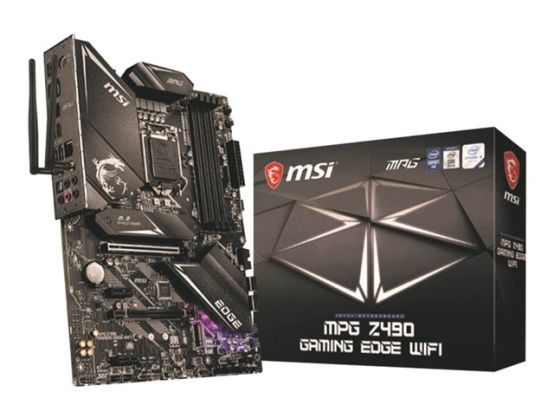

The MPG Z490 GAMING EDGE WIFI features M.2 Shield FROZR and Mystic Light RGB LED that allows you to personalize your PC with 16.8 million colors and 29 effects. Onboard 2.5G LAN with LAN manager delivers better network experience. The incorporated Wi-Fi 6 solution supports MU-MIMO and the BSS color technology, delivering high speeds. Preinstalled I/O shielding ensures better EMI protection and more convenience for installation. Also features MSI Core Boost, DDR4 Boost technologies and one button to control LED on/off easily.
USB / FireWire Ports1 x USB-C Gen 2x2 + 1 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
AudioHD Audio (8-channel)
LAN2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.1
Network Interfaces2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.1
Expansion / Connectivity
Expansion Slots1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe x1 ¦ 1 x PCIe 3.0 x16 (x4 mode)
Storage InterfacesSATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 2 x M.2 - RAID 0 / RAID 1
Interfaces1 x LAN (2.5Gigabit Ethernet) ¦ 1 x USB 3.2 Gen 2 ¦ 1 x USB-C Gen2x2 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x TOSLINK ¦ 2 x USB 2.0 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x DisplayPort ¦ 1 x HDMI ¦ 4 x USB 3.1 Gen 1
Internal Interfaces4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x USB-C Gen 1 - header
Power Connectors4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
