MSI

MB INT 1700 Z690 CARBON WIFI DDR5 ATX

Name: MB INT 1700 Z690 CARBON WIFI DDR5 ATX
Brand: MSI
SKU: 1TCPTMOT-003664
Price: 349.36 GBP
Availability: OutOfStock

SKU

1TCPTMOT-003664

Manufacture#: MPG Z690 CARBON WIFI

£291.13

£349.36 inc VAT

Checking delivery…

Product details

Motherboard
ATX
LGA1700 Socket
Z690 Chipset

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

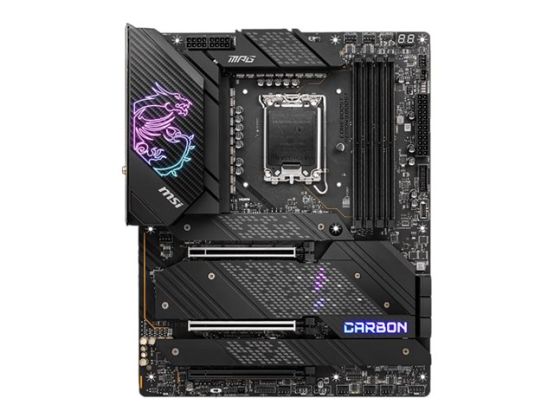

MSI MPG Z690 CARBON WIFI
Motherboard
ATX
LGA1700 Socket
Z690 Chipset
USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2
2.5 Gigabit LAN, Wi-Fi 6, Bluetooth
onboard graphics (CPU required)
HD Audio (8-channel)

Overview

MSI MPG Z690 CARBON WIFI - motherboard - ATX - LGA1700 Socket - Z690

Specification

Product Description MSI MPG Z690 CARBON WIFI - motherboard - ATX - LGA1700 Socket - Z690

Product Type Motherboard - ATX

Chipset Type Intel Z690

Processor Socket 1 x LGA1700 Socket

Compatible Processors (supports 12th Generation Intel Core / Pentium Gold / Celeron)

Max RAM Size 128 GB

RAM Supported 4 DIMM slots - DDR5, non-ECC, unbuffered

Storage Ports 4 x SATA-600 (RAID), 2 x SATA-600, 5 x M.2

USB / FireWire Ports 1 x USB-C Gen 2x2 + 5 x USB 3.2 Gen 2 + 4 x USB 2.0 + (1 x USB-C Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio HD Audio (8-channel)

LAN 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2

General

Product Type Motherboard - ATX

Chipset Type Intel Z690

Processor Socket LGA1700 Socket

Max Processors Qty 1

Compatible Processors (supports 12th Generation Intel Core / Pentium Gold / Celeron)

Supported RAM

Max Size 128 GB

Technology DDR5

Bus Clock 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 5066 MHz (O.C.), 5333 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6666 MHz (O.C.), 6133 MHz (O.C.), 6600 MHz (O.C.)

Supported RAM Integrity Check Non-ECC

Registered or Buffered Unbuffered

Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0

Audio

Type HD Audio (8-channel)

Audio Codec Realtek ALC4080

Compliant Standards High Definition Audio

LAN

Network Controller Intel I225-V

Network Interfaces 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2

Expansion / Connectivity

Expansion Slots 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 5.0 x16 (x16/x0, x8/x8 modes) ¦ 1 x PCIe 3.0 x16 (x4 mode)

Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ ASMedia ASM1061: SATA-600 -connectors: 2 x 7pin Serial ATA ¦ PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5

RAID Features Intel Smart Response Technology

Interfaces 1 x HDMI ¦ 1 x DisplayPort ¦ 5 x USB 3.2 Gen 2 ¦ 4 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x USB-C Gen2x2 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x TOSLINK

Internal Interfaces 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen2 - header ¦ 1 x audio - header

Power Connectors 24-pin main power connector, 2 x 8-pin ATX12V connectors

Features

BIOS Features MSI ClickBIOS 5

Hardware Features AMD CrossFireX technology support, anti-pop function, Debug LED, MSI Mystic Light, MSI Steel Armor, Intel Optane Memory Ready, M.2 Shield FROZR, pre-mounted I/O shield, MSI Core Boost, MSI Mystic Light Sync, MSI Audio Boost 5, 18+1+1 Phase Power Design

Miscellaneous

Included Accessories Case badge, cable labels, screwdriver, 1 to 2 RGB LED extension Y cable, CORSAIR RGB LED extension cable, Rainbow RGB LED extension cable, USB drive, Wi-Fi aerial, cleaning brush, MPG stickers, 2 x M.2 clips

Cables Included 2 x Serial ATA cable

Compliant Standards FIPS, FISMA, DisplayPort 1.4

Width 30.5 cm

Depth 24.4 cm
