USB 3.2 Gen 1, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB-C 3.2 Gen2
2.5 Gigabit LAN, Wi-Fi 6E, Bluetooth
onboard graphics (CPU required)
HD Audio (8-channel)

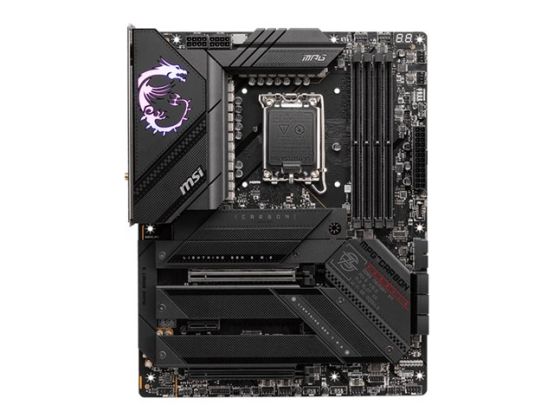

Overview
The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.
Supports 13th/12th Gen Intel Core/Pentium/Celeron processors for LGA 1700 socket
Supports DDR5 Memory, up to 7600+ (OC) MHz
Lightning fast game experience - PCIe 5.0 slot, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2x2
Enhanced power design - direct 19+1+1 phases power, Core Boost, Memory Boost
Premium thermal solution - enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7 W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
2.5G LAN and Intel Wi-Fi 6E solution - upgraded network solution for professional and multimedia use, delivers a secure, stable and fast network connection
Audio Boost 5 - reward your ears with studio grade sound quality for the most immersive gaming experience
High Quality PCB - 8-layer PCB made by server grade level material
Pre-installed I/O shield - better EMI protection and more convenience for installation
USB / FireWire Ports1 x USB-C Gen 2x2 + 1 x USB 3.2 Gen 2 + 6 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 1 x USB 3.2 Gen 1 + 2 x USB 2.0 via headers)
AudioHD Audio (8-channel)
LAN2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3
Network Interfaces2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3
Expansion / Connectivity
Expansion Slots1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x1 ¦ 1 x M.2 socket (PCIe 5.0 x4 mode) ¦ 3 x M.2 socket (PCIe 4.0 x4 mode) ¦ 1 x M.2 socket (SATA/PCIe 4.0 x4 (NVMe))
Storage InterfacesSATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 4 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
Interfaces1 x HDMI ¦ 2 x USB 3.2 Gen 1 ¦ 6 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen2x2 ¦ 1 x USB-C 3.2 Gen 2 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x TOSLINK
Internal Interfaces2 x USB 2.0 - header ¦ 1 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2x2 - header ¦ 1 x audio - header
Power Connectors24-pin main power connector, 2 x 8-pin ATX12V connectors
