MSI

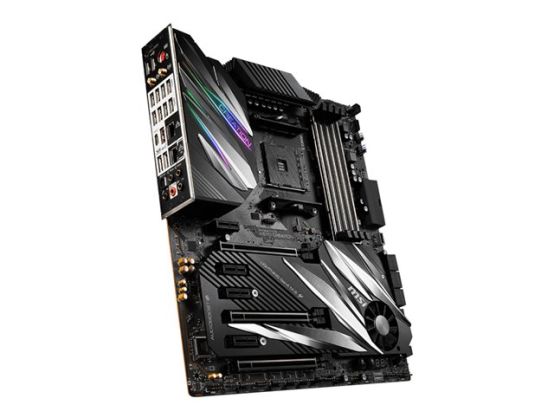

MSI PRESTIGE X570 CREATION - motherboard - extended ATX - Socket AM4 - AMD X570

Name: MSI PRESTIGE X570 CREATION - motherboard - extended ATX - Socket AM4 - AMD X570
Brand: MSI
SKU: 1TCPTMOT-003677
Price: 450.24 GBP
Availability: OutOfStock

SKU

1TCPTMOT-003677

Manufacture#: PRESTIGE X570 CREATION

£375.20

£450.24 inc VAT

Checking delivery…

Product details

Motherboard
extended ATX
Socket AM4
AMD X570 Chipset

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

MSI PRESTIGE X570 CREATION
Motherboard
extended ATX
Socket AM4
AMD X570 Chipset
USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2
Bluetooth, 10 Gigabit LAN, Gigabit LAN, Wi-Fi
HD Audio (8-channel)

Overview

Unique look and feel inspired by the concept of element explosion tailor-made for designers and content creators.

Specification

Product Description MSI PRESTIGE X570 CREATION - motherboard - extended ATX - Socket AM4 - AMD X570

Product Type Motherboard - extended ATX

Chipset Type AMD X570

Processor Socket 1 x Socket AM4

Compatible Processors Ryzen (supports 2nd and 3rd Generation Ryzen / 1st and 2nd Generation Ryzen with Radeon Vega Graphics)

Max RAM Size 128 GB

RAM Supported 4 DIMM slots - DDR4, non-ECC, ECC (operate in non-ECC mode), unbuffered

Storage Ports 6 x SATA-600 (RAID), 2 x M.2

USB / FireWire Ports 1 x USB-C Gen 2 + 1 x USB 3.2 Gen 2 + 10 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio HD Audio (8-channel)

LAN Bluetooth, 10 Gigabit Ethernet, Gigabit Ethernet, 802.11a/b/g/n/ac/ax

General

Product Type Motherboard - extended ATX

Chipset Type AMD X570

Processor Socket Socket AM4

Max Processors Qty 1

Compatible Processors Ryzen (supports 2nd and 3rd Generation Ryzen / 1st and 2nd Generation Ryzen with Radeon Vega Graphics)

Supported RAM

Max Size 128 GB

Technology DDR4

Bus Clock 2400 MHz, 1866 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.), 3200 MHz, 3066 MHz

Supported RAM Integrity Check Non-ECC, ECC (operate in non-ECC mode)

Registered or Buffered Unbuffered

Features Dual channel memory architecture, supported ECC modules operate in non-ECC mode, A-XMP support

Audio

Type HD Audio (8-channel)

Audio Codec Realtek ALC1220

Compliant Standards High Definition Audio

LAN

Network Controller Intel I211-AT / Aquantia AQC107 / Intel AX200

Network Interfaces Bluetooth, 10 Gigabit Ethernet, Gigabit Ethernet, 802.11a/b/g/n/ac/ax

Expansion / Connectivity

Expansion Slots 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 4.0 x16 (PCIe 4.0 x16/x0, x8/x8 modes (with 3rd Generation Ryzen CPU); PCIe 3.0 x16/x0, x8/x8 modes (with 2nd Generation Ryzen CPU); PCIe 3.0 x8/x0 mode (with Ryzen CPU with Radeon Vega Graphics / 2nd Generation Ryzen CPU with Radeon Graphics)) ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 4 x PCIe 2.0 x1

Storage Interfaces SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 ¦ PCIe 4.0 -connectors: 1 x M.2

Interfaces 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x TOSLINK ¦ 10 x USB 3.2 Gen 1 ¦ 1 x USB 3.2 Gen 2 ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x LAN (10Gigabit Ethernet) ¦ 1 x USB-C Gen2 ¦ 1 x PS/2 keyboard / mouse ¦ 2 x USB 2.0

Internal Interfaces 4 x USB 2.0 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen2 ¦ 1 x audio - header

Power Connectors 24-pin main power connector, 2 x 8-pin ATX12V connectors

Features

Hardware Features NVIDIA 2-way SLI Technology Support, AMD 3-way CrossFireX technology support, MSI Mystic Light, MSI Audio Boost 4, M.2 Shield FROZR, MSI Core Boost, MSI PCIe Steel Slot, Extended Heat-pipe Design, Zero Frozr technology, MSI Frozr Heatsink Design

Miscellaneous

Included Accessories External antenna, case badge, cable labels, 3 thermistor cables, MSI M.2 Xpander-Z Gen4 card, 1 to 2 RGB LED extension Y cable, CORSAIR RGB LED extension cable, MSI draw pocket, Rainbow RGB LED extension cable

Cables Included 4 x Serial ATA cable

Software Included Drivers & Utilities

Width 30.5 cm

Depth 27.2 cm
