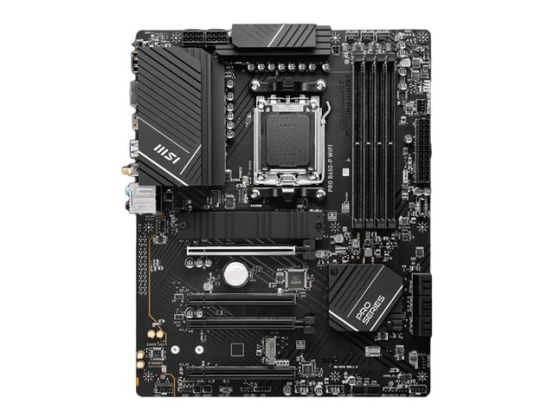

MB AMD PRO B650-P WIFI
Manufacture#: PRO B650-P WIFI
Checking delivery…
Product details
Motherboard
ATX
Socket AM5
AMD B650 Chipset
Payment options available at checkout
Main features
MSI PRO B650-P WIFI
Motherboard
ATX
Socket AM5
AMD B650 Chipset
USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2, USB-C 3.2 Gen2
2.5 Gigabit LAN, Wi-Fi, Bluetooth
onboard graphics (CPU required)
HD Audio (8-channel)
Overview
MSI PRO B650-P WIFI - motherboard - ATX - Socket AM5 - AMD B650
Product Description
MSI PRO B650-P WIFI - motherboard - ATX - Socket AM5 - AMD B650
Product Type
Motherboard - ATX
Chipset Type
AMD B650
Processor Socket
1 x Socket AM5
Compatible Processors
Ryzen (supports Ryzen 7000 Series)
Max RAM Size
128 GB
RAM Supported
4 DIMM slots - DDR5, non-ECC, unbuffered
Storage Ports
6 x SATA-600 (RAID), 2 x M.2
USB / FireWire Ports
1 x USB-C Gen 2x2 + 3 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + (1 x USB-C Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
Audio
HD Audio (8-channel)
LAN
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Manufacturer Warranty
3-year warranty
General
Product Type
Motherboard - ATX
Chipset Type
AMD B650
Processor Socket
Socket AM5
Max Processors Qty
1
Compatible Processors
Ryzen (supports Ryzen 7000 Series)
Supported RAM
Max Size
128 GB
Technology
DDR5
Bus Clock
5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture
Audio
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC897
LAN
Network Controller
Realtek RTL8125BG
Network Interfaces
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Expansion / Connectivity
Expansion Slots
2 x PCIe 4.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 4 x DIMM 288-pin ¦ 1 x CPU
Storage Interfaces
SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1
Interfaces
1 x HDMI ¦ 1 x DisplayPort ¦ 4 x USB 3.2 Gen 1 ¦ 3 x USB 3.2 Gen 2 ¦ 1 x USB-C Gen2x2 ¦ 6 x audio - mini-jack ¦ 1 x LAN (2.5Gigabit Ethernet)
Internal Interfaces
4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen2 - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Features
MSI ClickBIOS 5
Hardware Features
Digital PWM, MSI Audio Boost, Debug LED, 6 Layer PCB, Trusted Platform Module (TPM) 2.0, MSI Mystic Light, MSI Steel Armor, M.2 Shield FROZR, MSI Core Boost, 12+2+1 Phase Power Design, DIY Friendly Design
Miscellaneous
Included Accessories
IO shield, Wi-Fi aerial, 2 x M.2 clips
Cables Included
1 x Serial ATA cable
Compliant Standards
DisplayPort 1.4
Width
30.5 cm
Depth
24.4 cm
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
