MB IN LGA1700 B760M-P D5 M-ATX
Manufacture#: PRO B760M-P
Checking delivery…
Product details
Motherboard
micro ATX
LGA1700 Socket
B760 Chipset
Payment options available at checkout
Main features

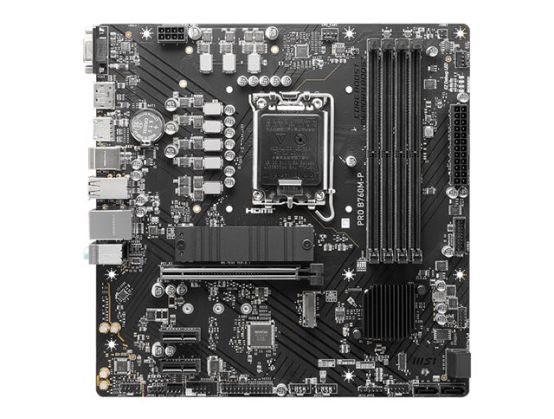

MSI PRO B760M-P
Motherboard
micro ATX
LGA1700 Socket
B760 Chipset
USB 3.2 Gen 1, USB-C 3.2 Gen2
Gigabit LAN
onboard graphics (CPU required)
HD Audio (8-channel)
Overview
MSI PRO B760M-P - motherboard - micro ATX - LGA1700 Socket - B760
Product Description
MSI PRO B760M-P - motherboard - micro ATX - LGA1700 Socket - B760
Product Type
Motherboard - micro ATX
Chipset Type
Intel B760
Processor Socket
1 x LGA1700 Socket
Compatible Processors
(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Max RAM Size
128 GB
RAM Supported
4 DIMM slots - DDR5, non-ECC, unbuffered
Storage Ports
4 x SATA-600 (RAID), 2 x M.2
USB / FireWire Ports
1 x USB-C 3.2 Gen 2 + 1 x USB 3.2 Gen 1 + 4 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
Audio
HD Audio (8-channel)
LAN
Gigabit Ethernet
General
Product Type
Motherboard - micro ATX
Chipset Type
Intel B760
Processor Socket
LGA1700 Socket
Max Processors Qty
1
Compatible Processors
(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Max Size
128 GB
Technology
DDR5
Bus Clock
4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0
Audio
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC897
Compliant Standards
High Definition Audio
LAN
Network Controller
Realtek RTL8111H
Network Interfaces
Gigabit Ethernet
Expansion / Connectivity
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 4.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2
Interfaces
1 x HDMI ¦ 1 x DisplayPort ¦ 1 x VGA ¦ 4 x USB 2.0 ¦ 1 x USB 3.2 Gen 1 ¦ 1 x USB-C 3.2 Gen 2 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack
Internal Interfaces
4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x SPI - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Features
MSI ClickBIOS 5, M-Flash
Hardware Features
Debug LED, MSI Memory Boost, MSI Steel Armor, MSI Audio Boost, M.2 Shield FROZR, MSI Core Boost
Miscellaneous
Included Accessories
IO shield, 2 x M.2 screw / standoff sets
Cables Included
1 x Serial ATA cable
Software Included
MSI Center, AIDA64 Extreme (60 days trial)
Compliant Standards
DisplayPort 1.4, FCC Part 15 Class B, WEEE
Width
24.384 cm
Depth
24.384 cm
