MSI

MB INT MB INT PRO Z790-A WIFI DDR4

Name: MB INT MB INT PRO Z790-A WIFI DDR4
Brand: MSI
SKU: 1TCPTMOT-004474
Price: 260.72 GBP
Availability: OutOfStock

SKU

1TCPTMOT-004474

Manufacture#: PRO Z790-A WIFI DDR4

£217.27

£260.72 inc VAT

Checking delivery…

Product details

Motherboard
ATX
LGA1700 Socket
Z790 Chipset

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

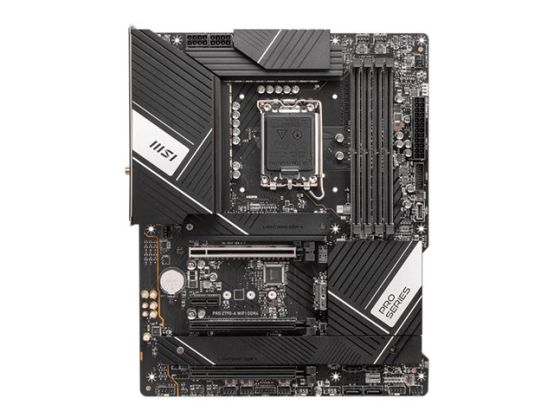

MSI PRO Z790-A WIFI DDR4
Motherboard
ATX
LGA1700 Socket
Z790 Chipset
USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2
2.5 Gigabit LAN, Wi-Fi, Bluetooth
onboard graphics (CPU required)
HD Audio (8-channel)

Overview

MSI PRO Z790-A WIFI DDR4 - motherboard - ATX - LGA1700 Socket - Z790

Specification

Product Description MSI PRO Z790-A WIFI DDR4 - motherboard - ATX - LGA1700 Socket - Z790

Product Type Motherboard - ATX

Chipset Type Intel Z790

Processor Socket 1 x LGA1700 Socket

Compatible Processors (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)

Max RAM Size 128 GB

RAM Supported 4 DIMM slots - DDR4, non-ECC, unbuffered

Storage Ports 6 x SATA-600 (RAID), 4 x M.2

USB / FireWire Ports 1 x USB-C Gen 2x2 + 3 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio HD Audio (8-channel)

LAN 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.3

General

Product Type Motherboard - ATX

Chipset Type Intel Z790

Processor Socket LGA1700 Socket

Max Processors Qty 1

Compatible Processors (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)

Supported RAM

Max Size 128 GB

Technology DDR4

Bus Clock 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 5000 MHz (O.C.), 5200 MHz (O.C.), 5066 MHz (O.C.), 5333 MHz (O.C.)

Supported RAM Integrity Check Non-ECC

Registered or Buffered Unbuffered

Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)

Audio

Type HD Audio (8-channel)

Audio Codec Realtek ALC4080

Compliant Standards High Definition Audio

LAN

Network Interfaces 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.3

Expansion / Connectivity

Expansion Slots 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x4 ¦ 2 x PCIe 3.0 x1

Storage Interfaces SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 4 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5

Interfaces 1 x HDMI ¦ 1 x DisplayPort ¦ 2 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x USB-C Gen2x2 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out (side surround) - mini-jack ¦ 3 x USB 3.2 Gen 2

Internal Interfaces 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen2 - header ¦ 1 x audio - header

Power Connectors 24-pin main power connector, 2 x 8-pin ATX12V connectors

Features

BIOS Features MSI ClickBIOS 5

Hardware Features Digital PWM, Debug LED, 6 Layer PCB, MSI Mystic Light, MSI Steel Armor, Double ESD Protection, 2oz Copper PCB, M.2 Shield FROZR, MSI Core Boost, Extended Heatsink Design, DIY Friendly Design, 16+1+1 Phase Power Design, MSI Audio Boost 5, Surface Mount Technology (SMT)

Miscellaneous

Included Accessories 1 x M.2 screw, standoff for M.2 socket, Wi-Fi aerial, M.2 clip

Cables Included 2 x Serial ATA cable

Compliant Standards FIPS, FISMA

Width 30.48 cm

Depth 24.384 cm
