PRO Z790-P WIFI DDR4
Manufacture#: PRO Z790-P WIFI DDR4
Checking delivery…
Product details
Motherboard
ATX
LGA1700 Socket
Z790 Chipset
Payment options available at checkout
Main features

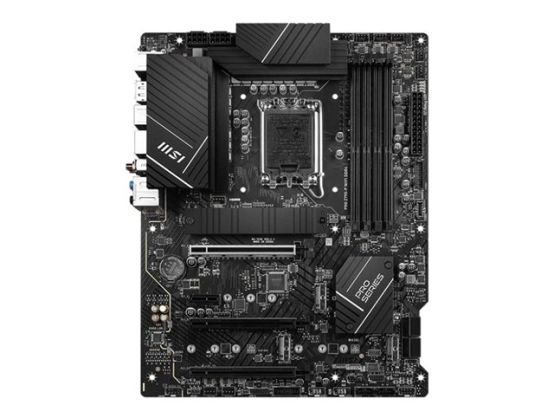

MSI PRO Z790-P WIFI DDR4
Motherboard
ATX
LGA1700 Socket
Z790 Chipset
USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2
2.5 Gigabit LAN, Bluetooth, Wi-Fi
onboard graphics (CPU required)
HD Audio (8-channel)
Overview
PRO Z790-P Wi-Fi DDR4 is designed with tons of flexible tools and convenient Wi-Fi solution with DDR4 memory version.
Product Description
MSI PRO Z790-P WIFI DDR4 - motherboard - ATX - LGA1700 Socket - Z790
Product Type
Motherboard - ATX
Chipset Type
Intel Z790
Processor Socket
1 x LGA1700 Socket
Compatible Processors
(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Max RAM Size
128 GB
RAM Supported
4 DIMM slots - DDR4, non-ECC, unbuffered
Storage Ports
6 x SATA-600 (RAID), 4 x M.2
USB / FireWire Ports
1 x USB-C 3.2 Gen 2x2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
Audio
HD Audio (8-channel)
LAN
2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
General
Product Type
Motherboard - ATX
Chipset Type
Intel Z790
Processor Socket
LGA1700 Socket
Max Processors Qty
1
Compatible Processors
(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Max Size
128 GB
Technology
DDR4
Bus Clock
2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 5000 MHz (O.C.), 5200 MHz (O.C.), 5066 MHz (O.C.), 5333 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Audio
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC897
Compliant Standards
High Definition Audio
LAN
Network Interfaces
2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Expansion / Connectivity
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x1 ¦ 1 x PCIe 3.0 x16 (x1 mode) ¦ 3 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) ¦ 1 x M.2 socket (Key E)
Storage Interfaces
SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
Interfaces
1 x HDMI ¦ 1 x DisplayPort ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x USB-C 3.2 Gen2x2 ¦ 1 x USB 3.2 Gen 2 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out (side surround) - mini-jack ¦ 2 x aerial ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x PS/2 keyboard / mouse
Internal Interfaces
4 x USB 2.0 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header ¦ 1 x SPI - header
Power Connectors
24-pin main power connector, 2 x 8-pin ATX12V connectors
Features
BIOS Features
MSI ClickBIOS 5
Hardware Features
Digital PWM, MSI Audio Boost, 6 Layer PCB, MSI Mystic Light, MSI Steel Armor, 2oz Copper PCB, M.2 Shield FROZR, Water Pump Header, MSI Core Boost, Extended Heatsink Design, 14+1+1 Phase Power Design, Surface Mount Technology (SMT), MSI Memory Boost
Miscellaneous
Included Accessories
I/O back plate, Wi-Fi aerial, 3 x M.2 clips
Cables Included
2 x Serial ATA cable
Software Included
Drivers & Utilities, AIDA64 Extreme (60 days trial), MSI Center, Norton 360 Deluxe (60 days trial)
Compliant Standards
WEEE, FIPS, FISMA, FCC Part 15 Class B, JIS C 0950, DisplayPort 1.4
Width
30.48 cm
Depth
24.384 cm
