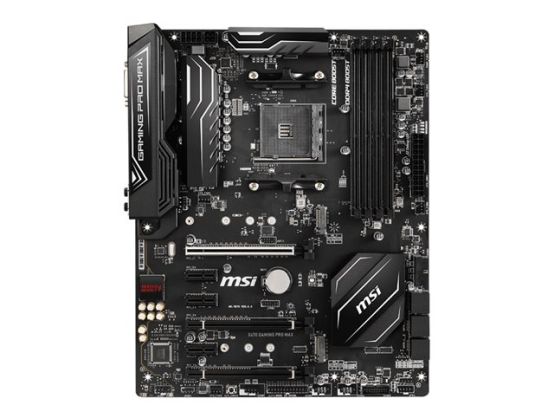

MSI motherboards have tons of convenient and smart design features, such as convenient pin-header keep out zone, friendly SATA & USB location and so on, so DIY users can pick and choose any gaming rig they want.
Supported RAM Integrity CheckNon-ECC, ECC (operate in non-ECC mode)
Registered or BufferedUnbuffered
FeaturesDual channel memory architecture, supported ECC modules operate in non-ECC mode, A-XMP support
Graphics
Max Allocated RAM Size2048 MB
Audio
TypeHD Audio (8-channel)
Audio CodecRealtek ALC892
Compliant StandardsHigh Definition Audio
LAN
Network ControllerRealtek RTL8111H
Network InterfacesGigabit Ethernet
Expansion / Connectivity
Expansion Slots1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 3.0 x16 (x16/x0, x8/x8 modes (with 1st, 2nd and 3rd Generation Ryzen CPU); x8/x0 mode (with Ryzen with Radeon Vega Graphics and 2nd Generation Ryzen with Radeon Vega Graphics); x4/x0 mode (with Athlon with Radeon Vega Graphics)) ¦ 1 x PCIe 2.0 x16 (x4 mode (auto turn-off if M.2 is occupied)) ¦ 3 x PCIe 2.0 x1
Storage InterfacesSATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 1 x M.2
Interfaces1 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.2 Gen 2 ¦ 4 x USB 3.2 Gen 1 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x TOSLINK ¦ 2 x USB 2.0 ¦ 1 x audio line-out (side surround) - mini-jack ¦ 1 x HDMI ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x DVI-D ¦ 1 x PS/2 keyboard / mouse
Internal Interfaces4 x USB 2.0 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x parallel - header
Power Connectors4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
